The engineer's sketch-book of mechanical movements, devices, appliances, contrivances and details employed in the design and construction of machinery for every purpose; (1902)
Barber, Thomas Walter. [from old catalog] · New York, Spon & Chamberlain · leaf 315

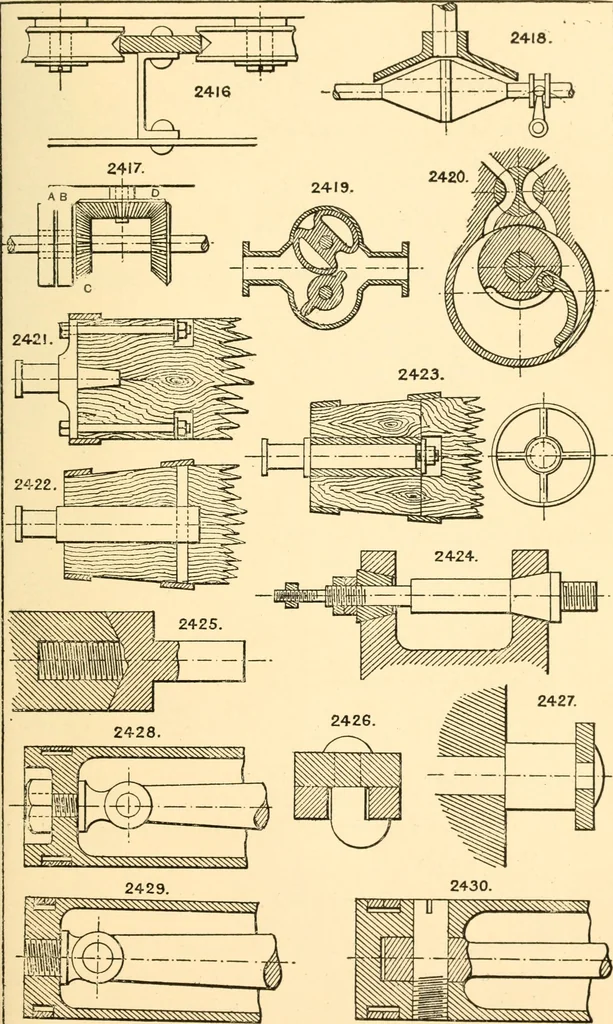

. 2425. Attachment of a loose end centre to a shaft, with coned end, which prevents the hole bursting from cross strain on the centre. 2426. Hook centre pin, easily disengaged. 2427. Stud centre, with washer riveted on or secured by a nut. 2428. Ram or trunk piston centre for connecting rod,… … 3IO THE ENGINEERS SKETCH-BOOK. 2431. Swaying ball centre. 2432. Rocking or swaying centre.2438. Rocking or swaying centre. 2434. Eyelet centre for two or more levers. 2435. Centre pin, with lug and screw, to prevent it from working out. 2436. 2437 & 2438. Methods of fitting up connecting rod…
Mechanical movements
