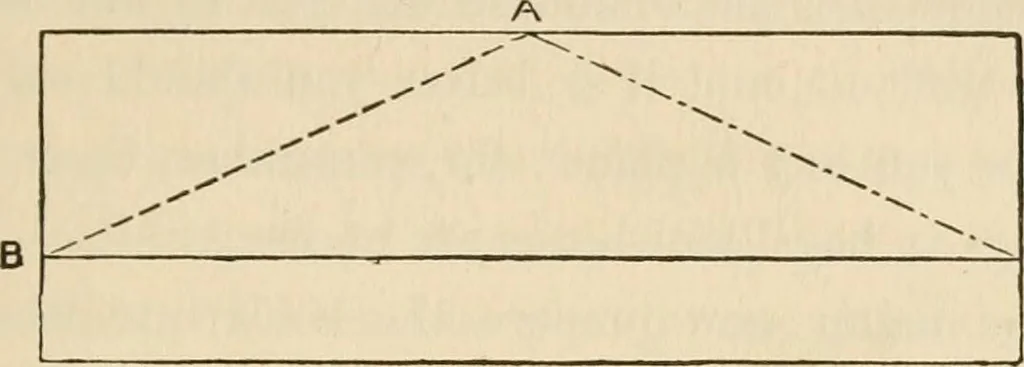

nches wide. Here it is (Fig. 10).Measure a length of 6 inches from either end to the middleat A, and make a mark at that place. Draw a line, C B,one inch from the opposite side, the whole length of theboard, and mind you draw it correctly. You should measurean inch at B, and at C, and then draw a… … Pig. 10. order to cut this piece, you must begin at A, not at B orC, or else if the saw should stick you will be sure to spliloff a strip right across the piece; but if it should stickwhen you are cutting from A, you will only split off a bitof one of the three-cornered outside pieces, which…
