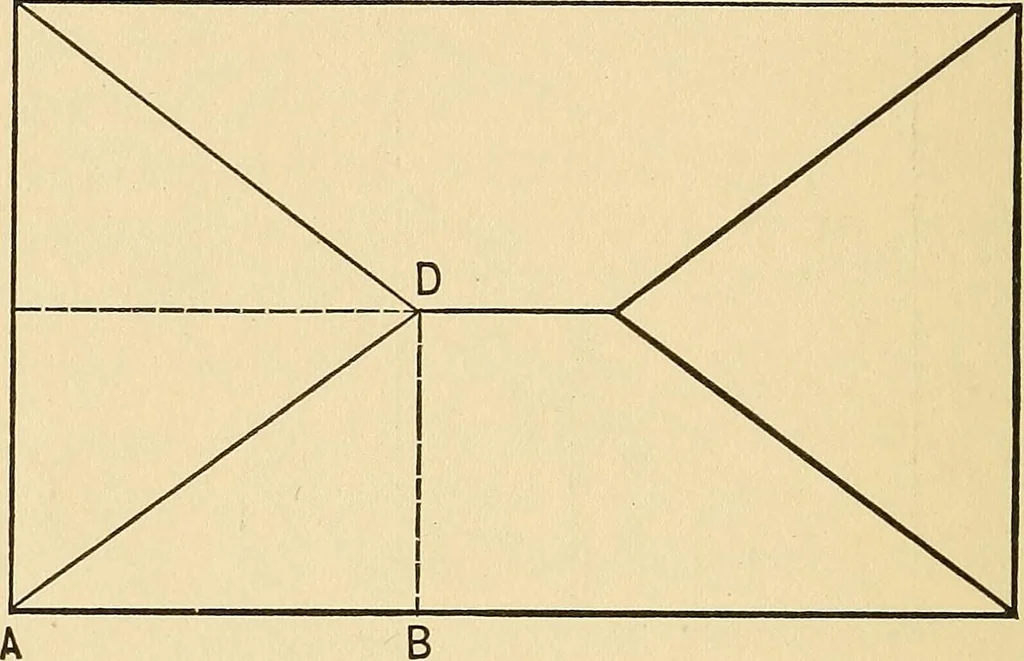

y master it, we will showhow the first simple method, Fig. 57, may be furtherextended to m.eet the req,uirements of anv roof, show- THE BUILDERS GUIDE. ing all the rafters without the usual complicationsof cross lines. The plan never fails on roofs of anypitch, equal or unequal, and, no matter how… … Fig. 65.—Plan of an Irregular Hip Roof. the hip and a short run on the opposite side. Thiskind of a hip is called an irregular hip, because thebase line or run of the hip is not on an angle of 45°with the plates, as in the regular hip. In Fig. 65A B is the run of common rafter on the left side…
