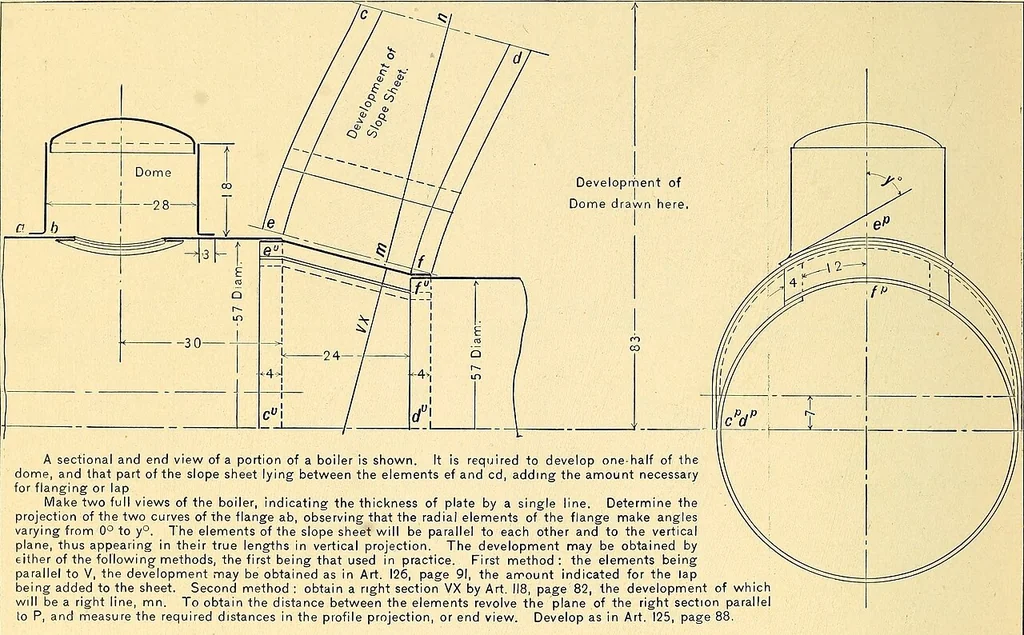

Determine the intersection between the solids. The unit of measurement is 1/16 inch. Space required 7 x lO inches. PLATE 32 … A sectional and end view of a portion of a boiler is shown. It is required to develop one-half of ihedome, and that part of the slope sheet lying between the elements ef and cd, adding the amount necessaryfor flanging or lap Make two full views of the boiler, indicating the thickness of plate by a…
