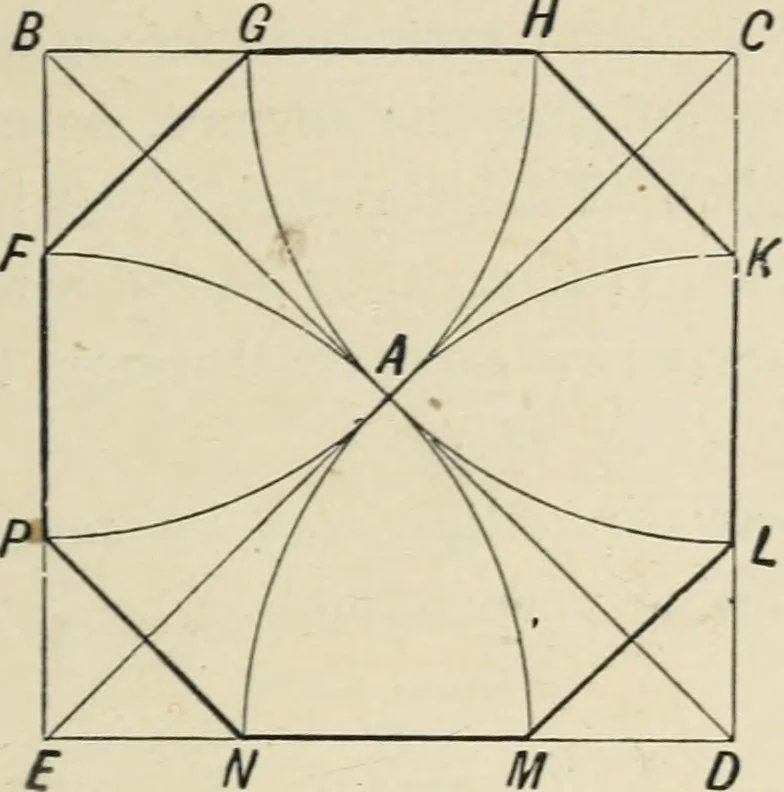

nce KA describe arc EA cutting KE in E; draw similararc BF cutting MF in F; with centre E and distance EKdescribe arc to cut AG in G ; similarly find H; join EG, GHand HF, completing the octagon. (Fig. 92.) (b) In a given square. Let BCDE be the given square; draw diagonals intersectingat A. With… … N M Fig. 93. No. 22.—To draw a perfect ellipse by means of the fociand intersecting arcs, axes being given.
