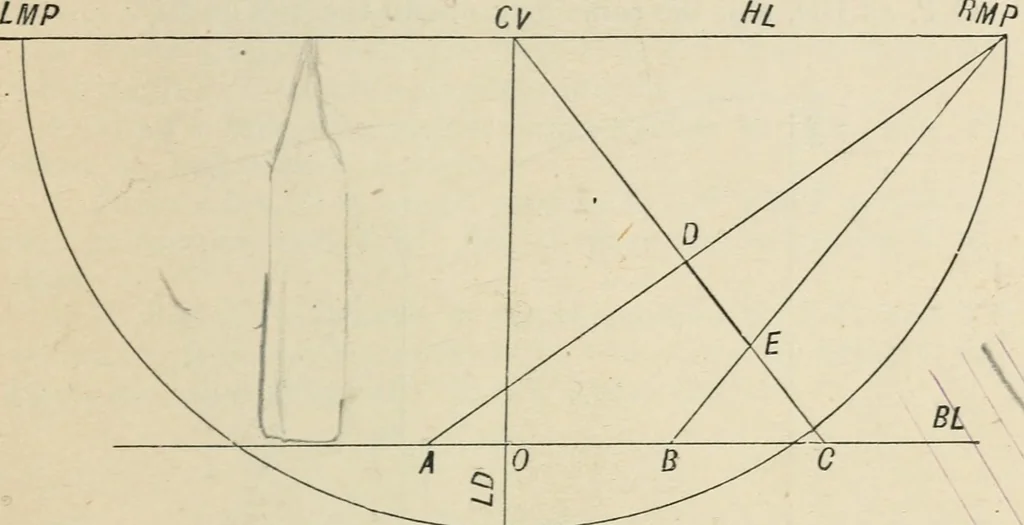

rom O),and make BA = 3 (length of line); join B C.Y. and A C.V.From B measure off BE = 4 (distance within P.P.); joinE LMP, cutting B C.V. in D ; through D draw DC to lineA C.V. and parallel to AB. CD is line required, for it isequal to AB, and its near extremity D is same distance tothe left that… … SP Fig. 12. B.L., L.D., as before, join C C.Y. Fr om C Draw H.L., B.L., L.D., as before, and mark point RMP.Make OC = 4, join C C.Y. From C measure off CB = 2, andfrom B mark off BA = 3 (length of line) ; join B RMP andA RMP, to cut C C.Y. in E, D. ED is the line required, forDE is parallel to LD,…
