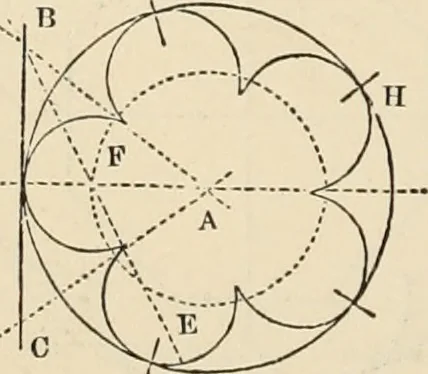

CBAr. III. DOORWAYS. ;)j7 where it crosses tlie line A D, as at F, will be the centre of the required circle or lobe.A circle witii the radius A F being drawn, the other centres on the lines of division, asA G, A H, &c., are readily found. Another usual geometrical problem in tracery work…
