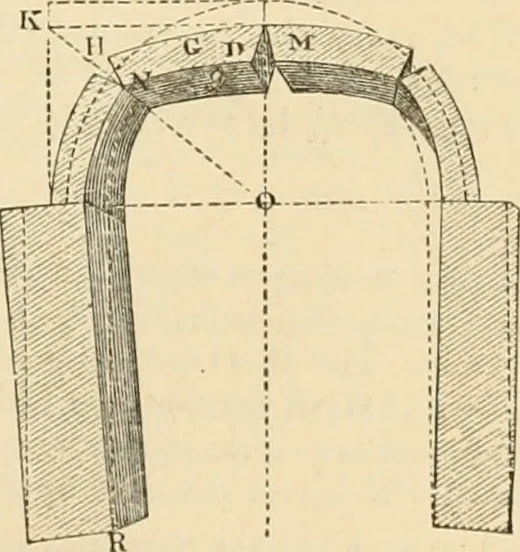

hrust of an arch mav be destroyedby crampin.j the under side of the voussoirs near thesummit and the upper side of those towards the middle oftlie haunches ; and this method is greatly preferalile tochains or iron bars on the extrados, because these haveno effect in prevent.ng a failure on the… … (ilA THEORY or ARCHITECTLRE. Hook II. that takes |)Iace at the haunches, like a hoop loaded when its ends are fixed. The mostadvantajreous position for a chain to oppose the effort of an arch is to let it pass through thepoint K wht^re the efforts meet. PC is the tangent before failure, and O the…
