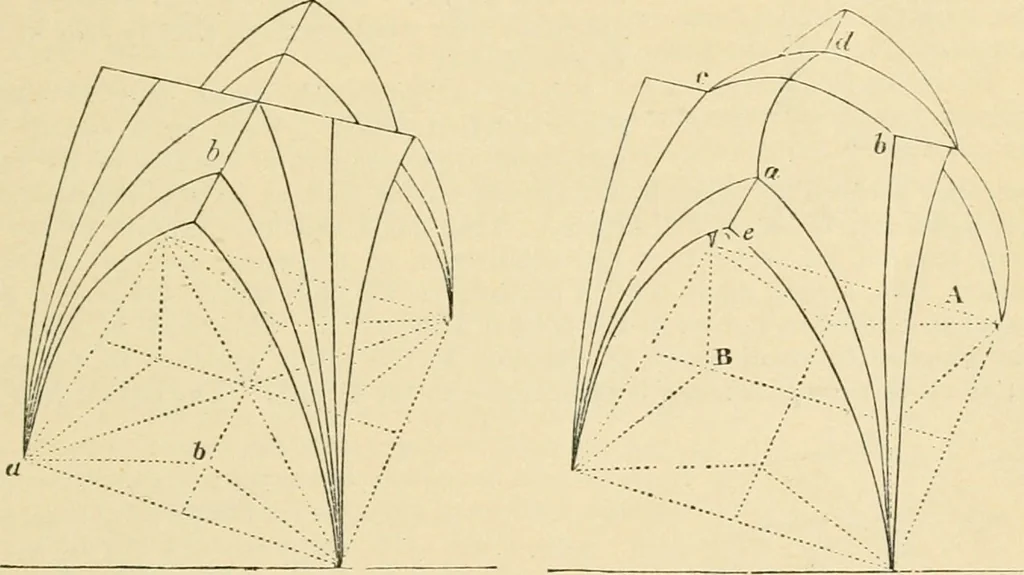

he invariably found that the rib itself is thinner tlian the uniform thickness of theRoman vault under similar circumstances: and that the jianel, which is the principal partof the vault in superficial quantity, sometimes does not exceed one ninth part of the rib inthickness. The Gothic architects,… … Fig. 590(7. Fig. 590A. H99/. In the second example (_/?./• 590ff.), another rib, a 6, is introduced, which on plaiproduces the form of a star of four points. The forms of tliese thus inserted ribs resultfrom curves of the lines on the plan in the space to be vaulted. As many radii are drawn
