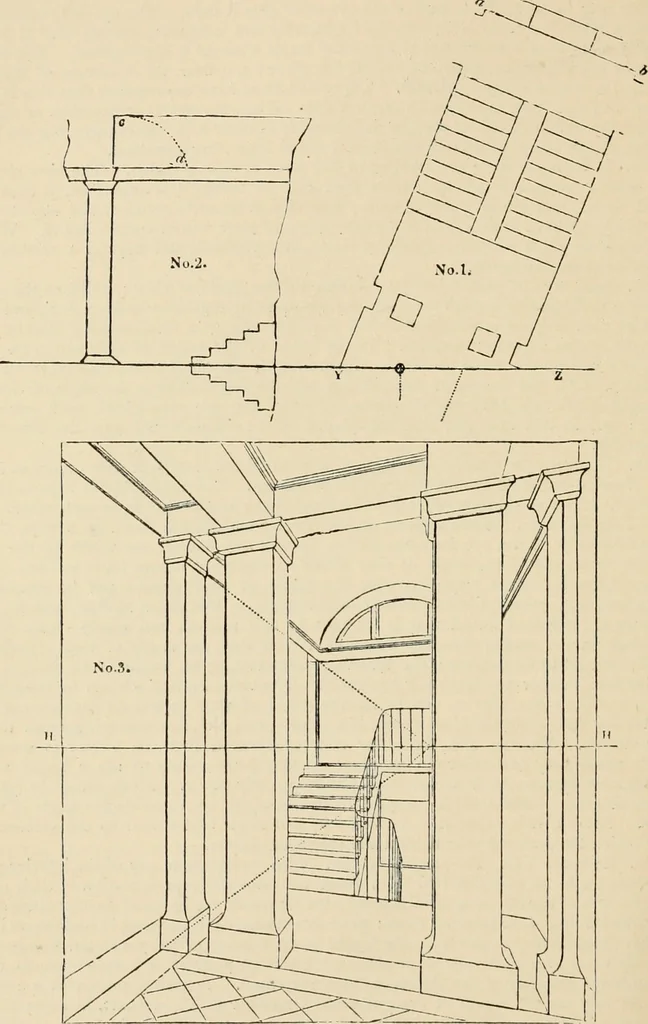

e are now engagedis not supposed to be a treatise on Perspective, but merely a concise developement of itsprinciples so as to give the reader such a general knowledge of the subject as may enable ;-?2 THEORY OF ARCIiiTECTLUE. Book II.. liim to pursue it, if he please, from the hints it affords.… … purposes of the delineation ; YZ (No. l.)is the plane of the picture, O is its centre. Iloiiithe data, therefore, there will be no difficulty of obtaining the vanisliiiig points of tlie sidesYn and ah. The diagram is not encumbered with the visual rays necessary for the deline-ation, which we are…
