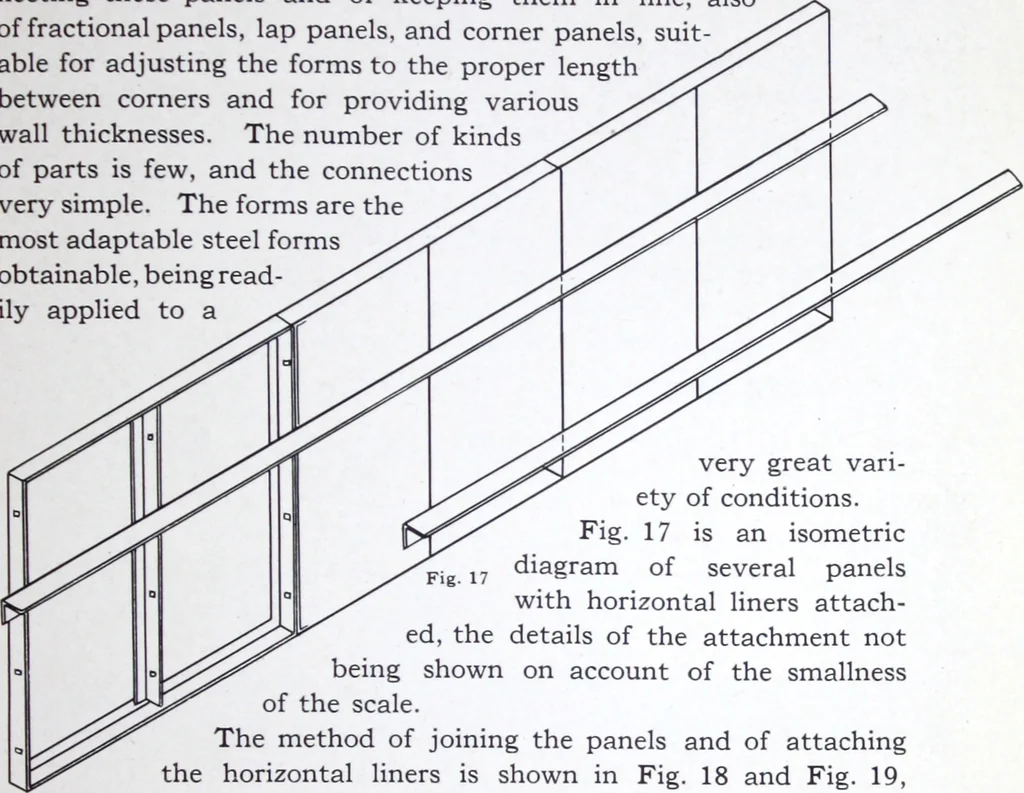

NS AS stated previously, Blawforms for Light Walls and Foundationsb consist of standard panels, two feet square, with means for con-necting these panels and of keeping them in line, alsoof fractional panels, lap panels, and corner panels, suit-able for adjusting the forms to the proper… … Fig. 17 very great vari-ety of conditions.Fig. 17 is an isometricdiagram of several panelswith horizontal liners attach-ed, the details of the attachment notbeing shown on account of the smallnessof the scale.The method of joining the panels and of attachingthe horizontal liners is shown in Fig. 18…
