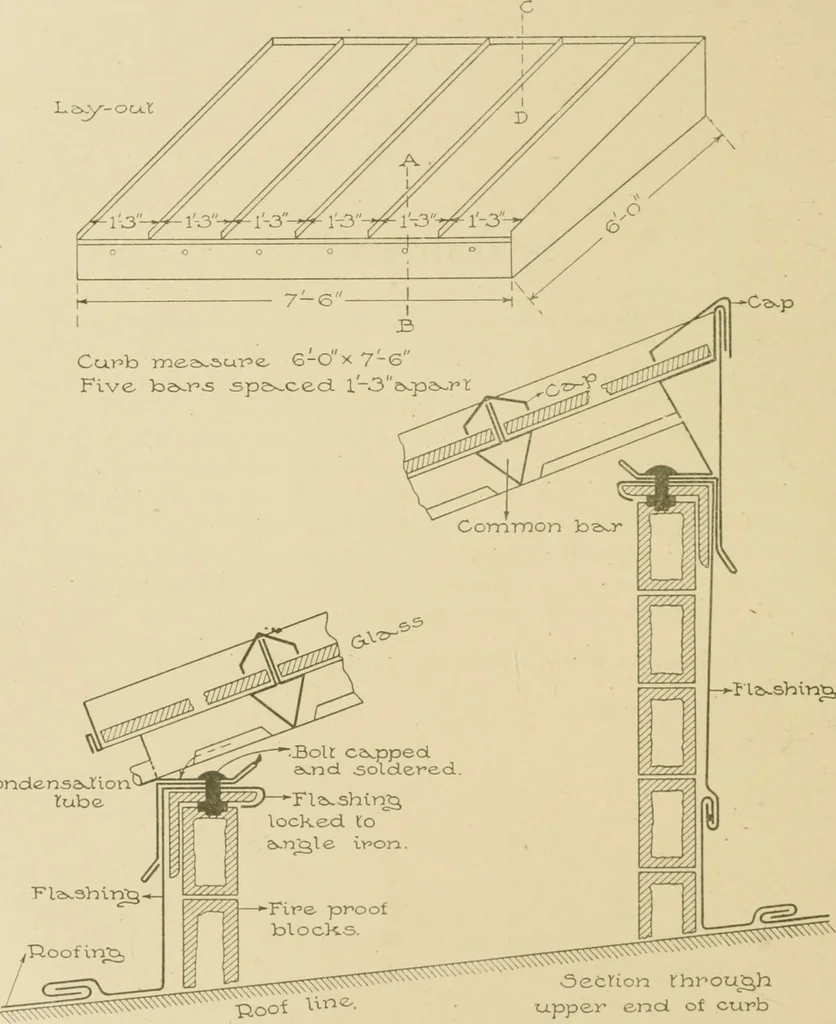

ht rests, bolted through the angle iron as shown, thebolt being capped and soldered to avoid leakage. The same construction is used in the section through CD, with the excep-tion, that when the flashing cannot be made in one piece, a cross lock is placedin the manner indicated, over the fireproof… … ll2>^shm^ Condensa-Viontube Un2, •Section throu.o.h lov/e-rend. of ourb A.-E> vSecrion throughTj.pper end of curb■ C-D fOR EXPLANATION OF THIS PROBLEM SEE BACK OF PAGE SHEET METAL WORK PART III SKYLIGHT WORK Wliere formerly skylights were constructed from wrought irono.r* wood, to-day in all…
