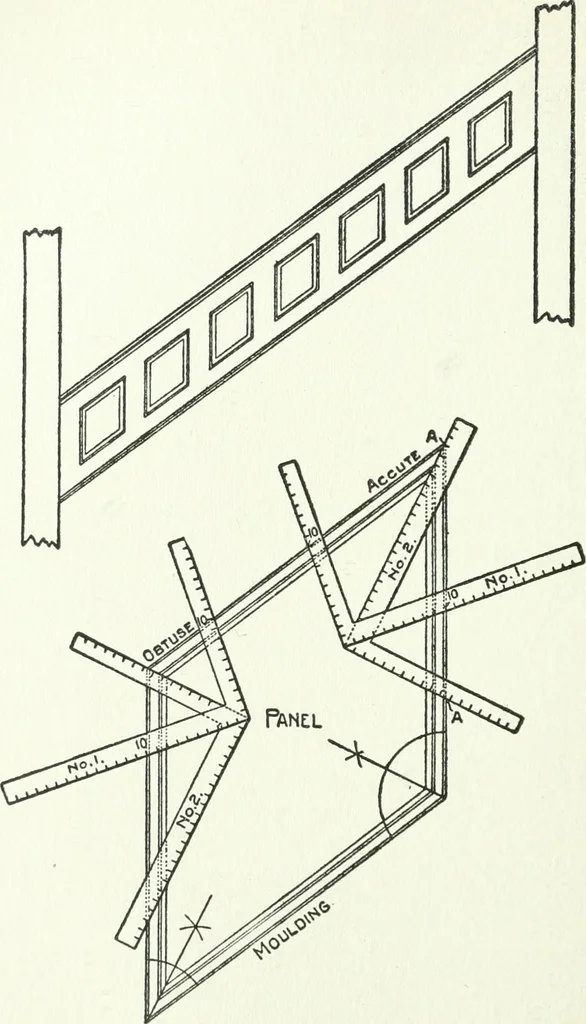

esharper one is known as an acute, and the otheras an obtuse angle. The former is less than 90,and the latter more than 90 degrees. However,by this method, finding the miter line for one,also gives the other, because when the blade isgiving the miter line for the acute, the tongue isgiving it for… … Fig. 87. Paneled Finish for Stairs. FRAMING 157 squares to get the proper angle, simply take likefigures on square No. 1, say 10 and 10; placethem so that these figures are at the edge ofthe panel, as shown, and with the heel of squareNo. 2 resting on the former, and with the bladeintersecting the…
