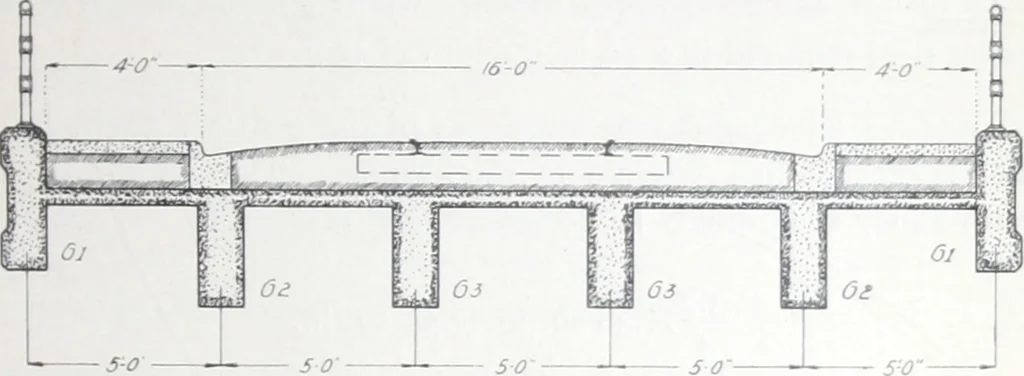

i-f-J-j-t-i-i-i-f 1 , 1 1 t II 1 hU-H-t-t L_i J_u a J_L J Ji ■ 1- T T i :..+.. —i—,.-.•■ ,*—^—^i it Li- l [H GIRDER BRIDGES. The following detailed design will illustrate the application of the methods advocated to the design of a girder bridge: Problem—Design a girder bridge, resting on abutments;… … Fig. 16. Floor Slab—The minimum thickness of floor slabs will betaken as 5. This thickness of slab should take care of extraordinaryconcentrated loads such as might be caused should a car be derailed onthe bridge. To provide for such contingencies all slabs for girder bridges willhe designed for a…
