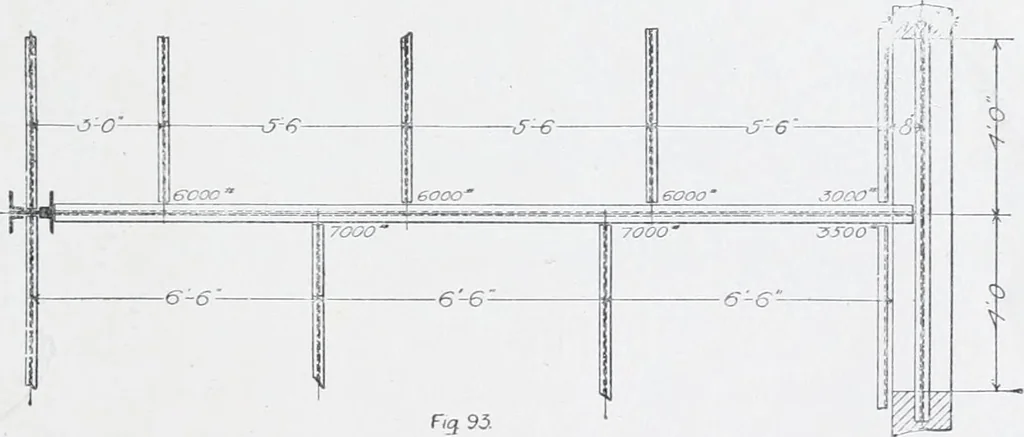

girders. 18. In the above warehouse, what changes in spacing ofcolumns longitudinally could be made to give more practicablesections of beams and girders, and what sizes could then be used? 19. Given a girder loaded as shown by Fig. 93. Allowablefibre stress, 16,600 lbs. per square inch. Required:… … 20. Given a system of overhead beams for an elevator asshown by Fig. 94. Required the size of beams Nos. 1, 2 and 3.Make allowance for shock as previously stated, and observe thatwhen two beams are used together as a girder they must be of thesame depth. Allowable fibre stress 15,000 lbs. per…
