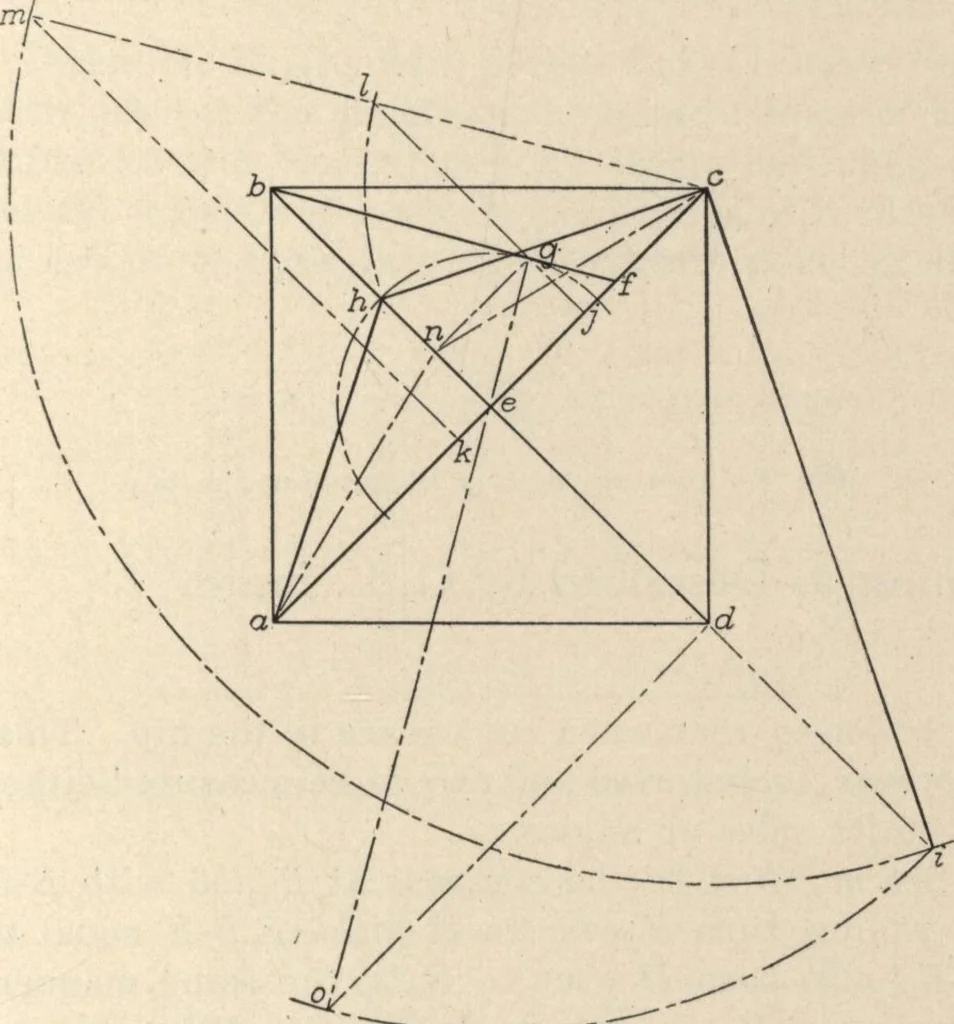

he plan of the hip forms an angle of45 deg. with the plate, take the length of the hip onthe blade and the rise on the tongue of the steelsquare and apply to the square end of the hip; markalong the tongue which will give the bevel for back-ing the hip. C. F. S. desires to know the reason for this.… … Fig. 1—Plan with Pitch of 30 Degrees so it will be easy to follow up the lines in all cases. Referring to the diagrams, a, 6, c, d and a repre-sent the plate line; b and d and a and c the plan ofthe hips, b and e the run, e and / the rise and band / the length of the hip. Now using the well-known…
