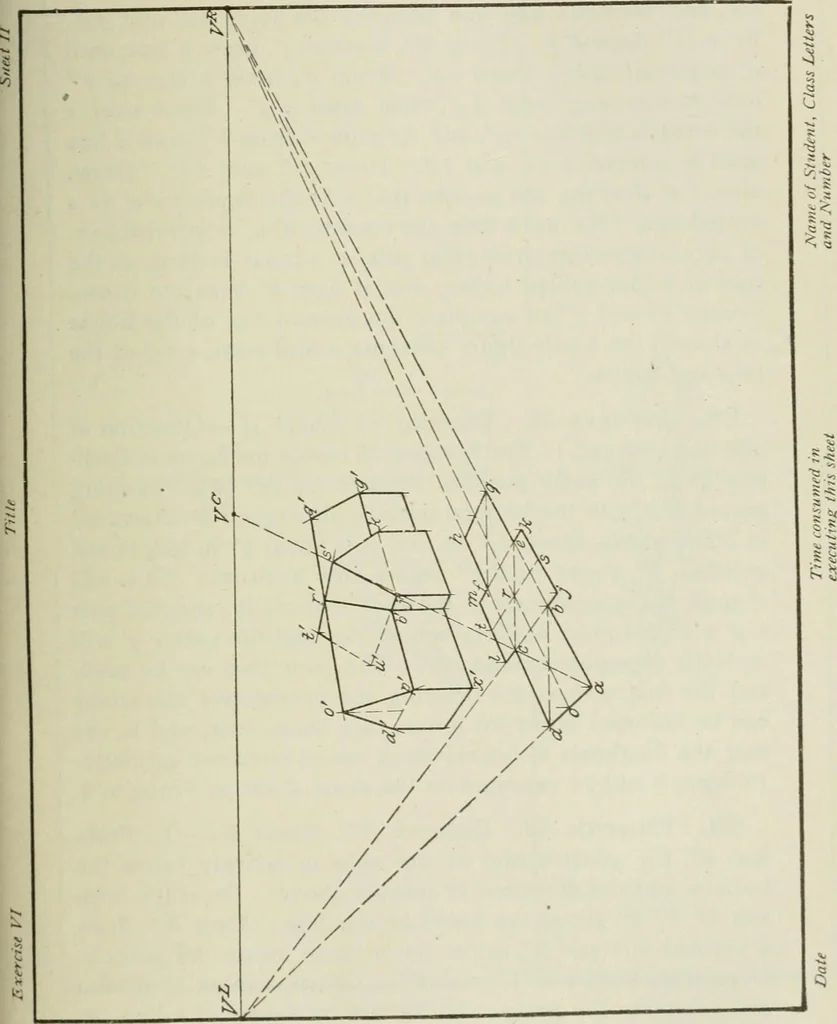

in plan at o; also, draw from F^ a linethrough the point of intersection oi ce with the ridge, andthrough this point draw st, the ridge of the wings of thehouse. Now construct entirely below the horizon a birds-eye view showing this simple figure consisting of rectangu-lar solids covered with… … 62 PROJECTION DRAWING §2 and also draw a line from p toward F^ until it intersectsbb, and continue this line between the lines kk and gg.From V^ draw b j. From V^, through y, draw a line untilit intersects kk. Draw oo. From o, draw a line to V^until it intersects with qq\ then draw q g. Draw over…
