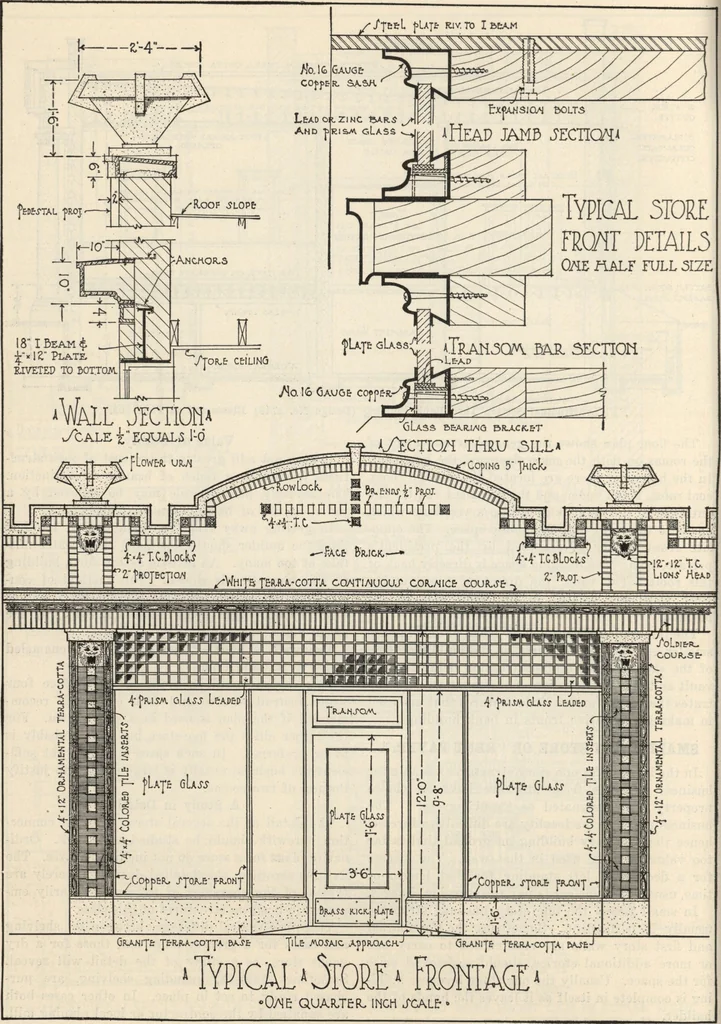

tore do not include fixtures. Thefixtures shown in the detailed drawings merely aretypical of the character of fixtures ordinarily em-ployed in business structures of this class. There is a radical difference between the shelvingand cases for a grocery store and those for a drygoods store, as a… … Details of Store Front Construction for Design No. 6760 as Illustrated on Opposite Page. TYPES OF BUILDINGS 109 When fixture details are made a part of a plan itis correct to assume that they are to be suppliedunless specification expressly relieve the materialman or the contractor of the burden. A…
