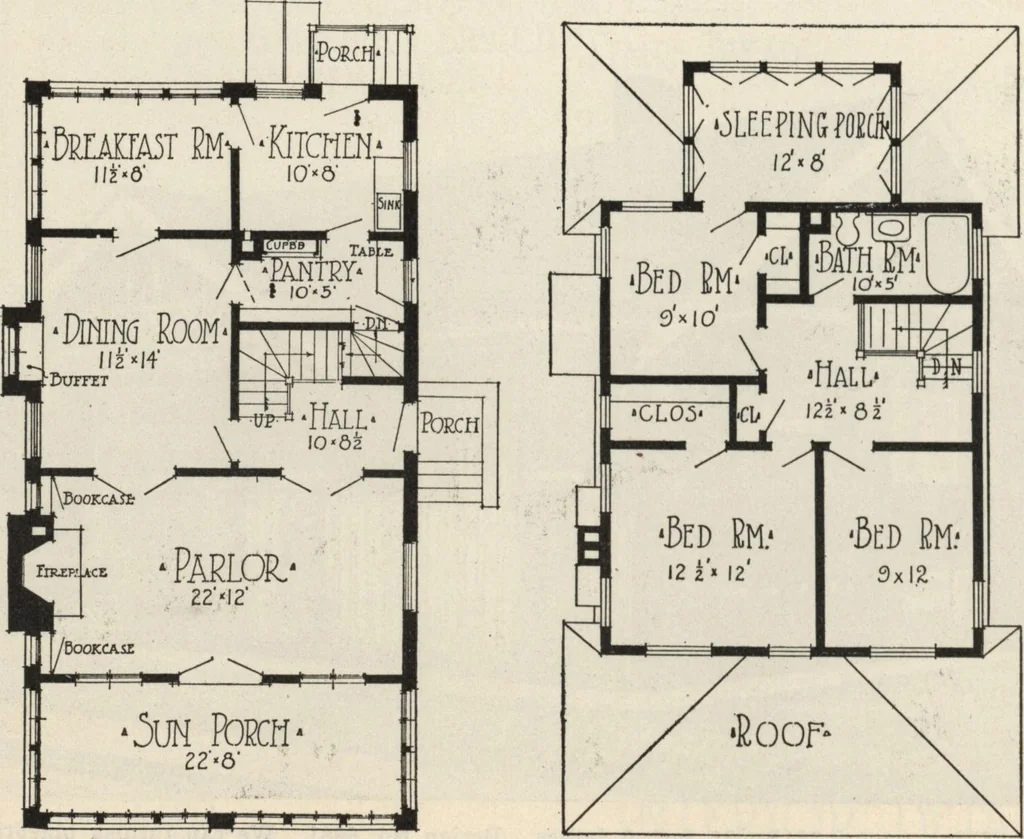

o any desiring them for only $9.00 per set. For details of construction and of interior finish, see pages 155, 157, 158. difficult details. The object is to use stock patterns expense. In fact, the object in showing1 these pat- of millwork that are carried regularly by lumber- terns so carefully is… … First floor plan. Arrangement of house, size 24 by 44 feet. Second floor plan. HOW TO READ PLANS 117 CHAPTER XX.DETAIL DRAWINGS Detail drawings are made to larger scale to showWith greater accuracy the construction of some cer-tain part. Sometimes they are made full size, butofttimes smaller, even…
