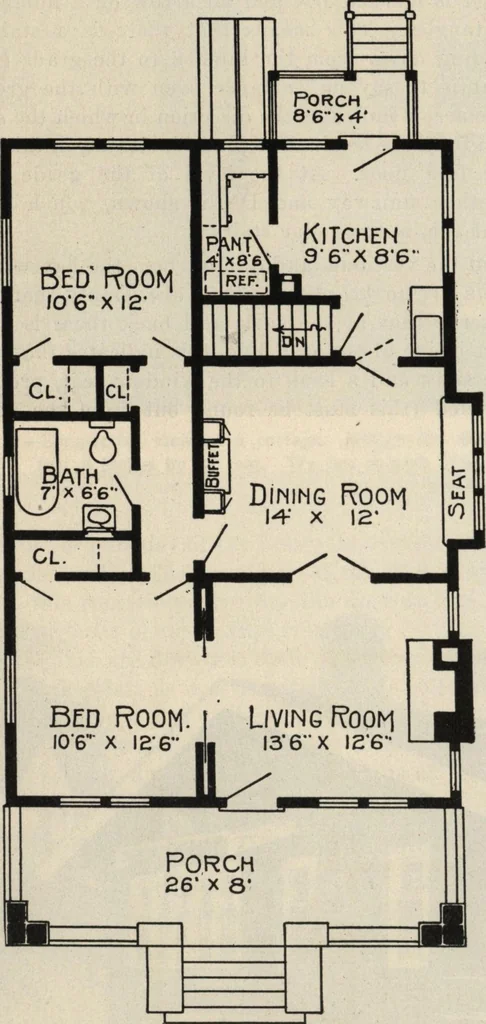

cifications), however we know it is more thana board set in between the walls. In the bedroom closet the line denotes that a shelfis placed toward the front. The Bath. The bathroom is practically self-explanatory—noone can mistake the fixtures, Reading the plan fromleft to right, first is the water… … Fig. 40—A study in plan reading. (Main floor plandesign No. 6632.) to an actual set of working drawings, and beforetaking that up it will be necessary to study a fewmore designs, so as to get a good idea of the variousdevices used to indicate the many parts of a house.Reading a Perspective. Fig. 39…
