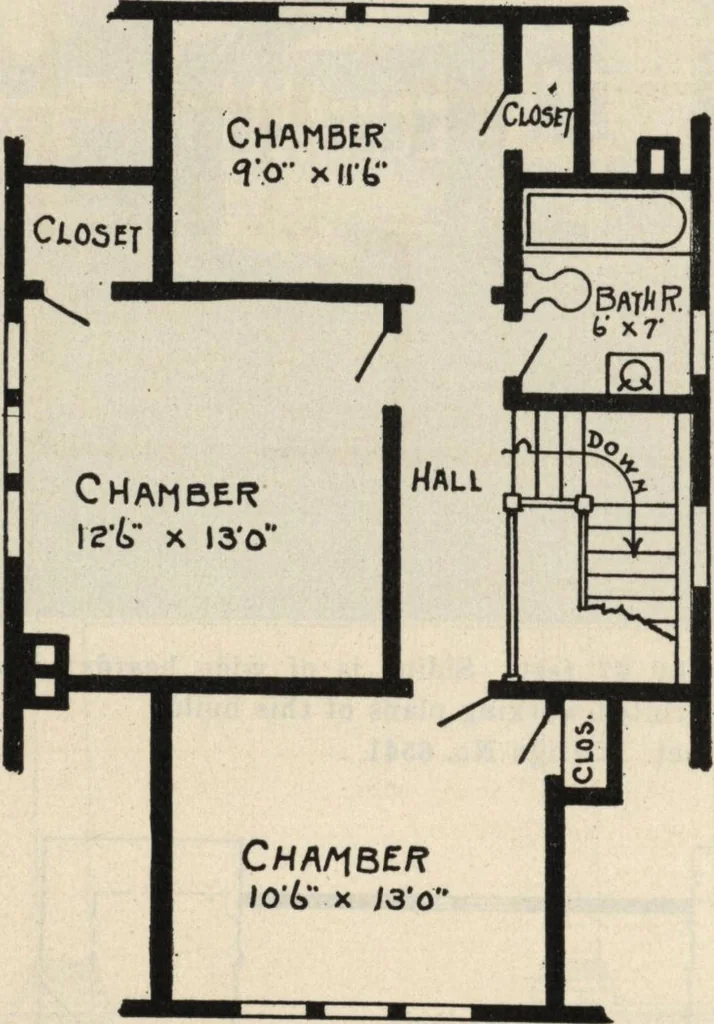

PLANS Architects frequently show on the plans the loca-tion of furniture, but this has nothing to do with theconstruction of the building. If you receive a planwith the furniture layout indicated simply ignore itbut be careful to followdimensions or scale so thatthere will be the necessary room… … Fig. 47. Another method of showing wall lines broken. to go there. Starting with Fig. 49 and entering theliving room from the porch, there is an arm chairshown on each side of the doorway, in the center is a small table with four small chairs, towards theright is a sofa or davenport; at the rear,…
