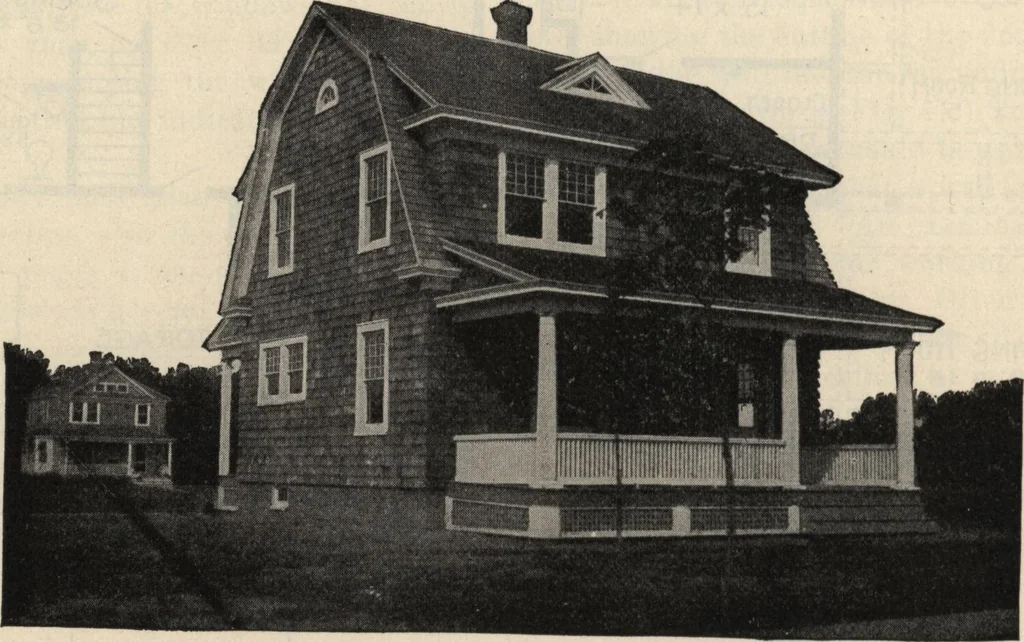

drawings isan example of wash rendering.) Figs. 53 and 54 show the floor plans of the houseas seen in Figs. 51 and 52. The object of showing the perspective views of thedifferent houses is to train the mind of the reader tosee the relation of the complete house to the plansand elevations. When this… … Fig. 48. Perspective of six-room shingled cottage. Size, 25 feet wide by 22 feet in depth. We can furnish blueprinted work-ing plans of this building to any desiring them for only $8.00 per set. Design No. 6677. i HOW DIFFERENT FIXTURES ARE SHOWN 23
