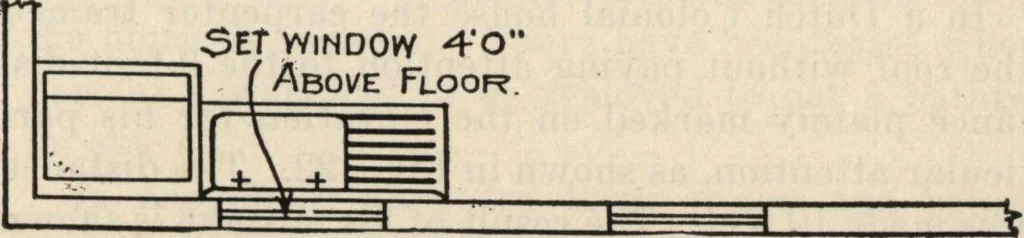

not lookwell. They should project a little, as shown in Fig.117. Just consider a corner fireplace as a straightone with the corners cut off. Pay particular attention to the plaster lines aroundbrickwork. Sometimes the brickwork of the chim-ney is exposed in the kitchen; in eases of this kinda face… … Fig. 121—Marking window height on plan. 46 HOW TO READ PLANS Check Ceiling Heights. Be sure that the ceiling heights are made as calledfor; remember that if the section is marked 9 0and the arrows are taken from the floor line to under-line of plastered ceiling it means that for the dis-tance…
