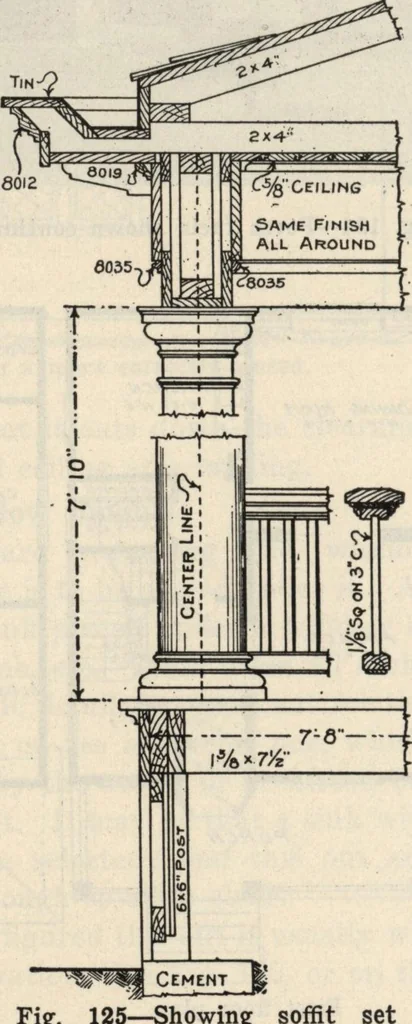

er closets,washtubs, sinks, ranges, boilers, etc. See thatenough space has been allowed for them. Too oftenonly 2 feet is allowed for the tub in a bathroom,not enough room for the toilet and quite often notenough space in front of the toilet for leg room. An example of this will be seen in Fig.… … Fig. 125—Showing soffitback from outer line offoundation.
