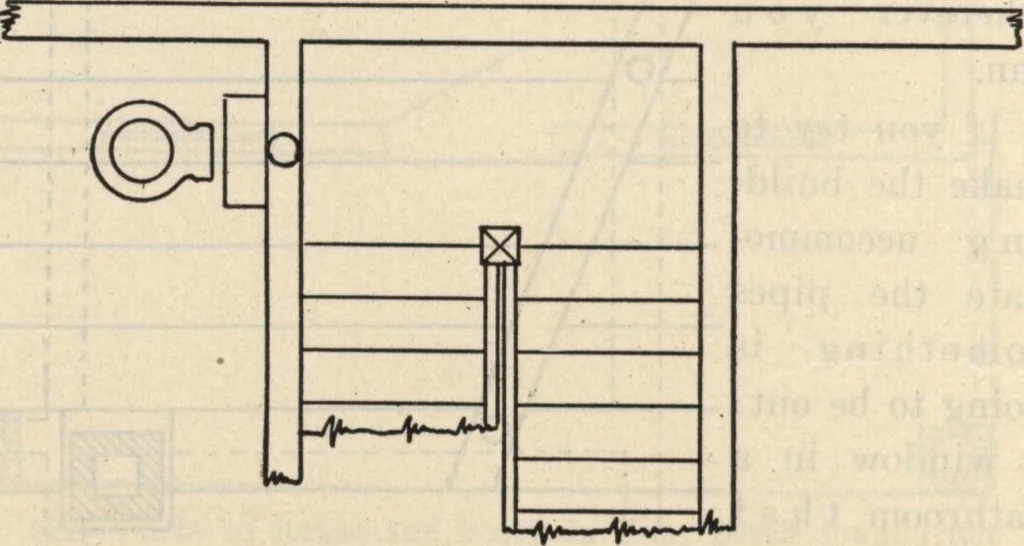

the original plan of a three riser platform land-ing stair was carried out with the result of nothaving headroom enough as shown in Figs. 141 and142. What should have been done, if the well couldnot be enlarged, was to make a two riser platformas shown in Fig. 143. These are all little points,… … Fig. 136—Impractical soil pipe plan. MISTAKES IN READING PLANS 51 F hi Fig. 137—Hiding soil pipe by making a recessed window. Basement Stairs. Particular attention should be paid to basementplans to see if there is plenty of room for the cellarstairs. An error frequently made by architects is…
