The Determination of Several Spray Characteristics of a High-Speed Oil Engine Injection System with an Oscilloscope (1928)
NASA Technical Reports Server (NTRS) · leaf 13

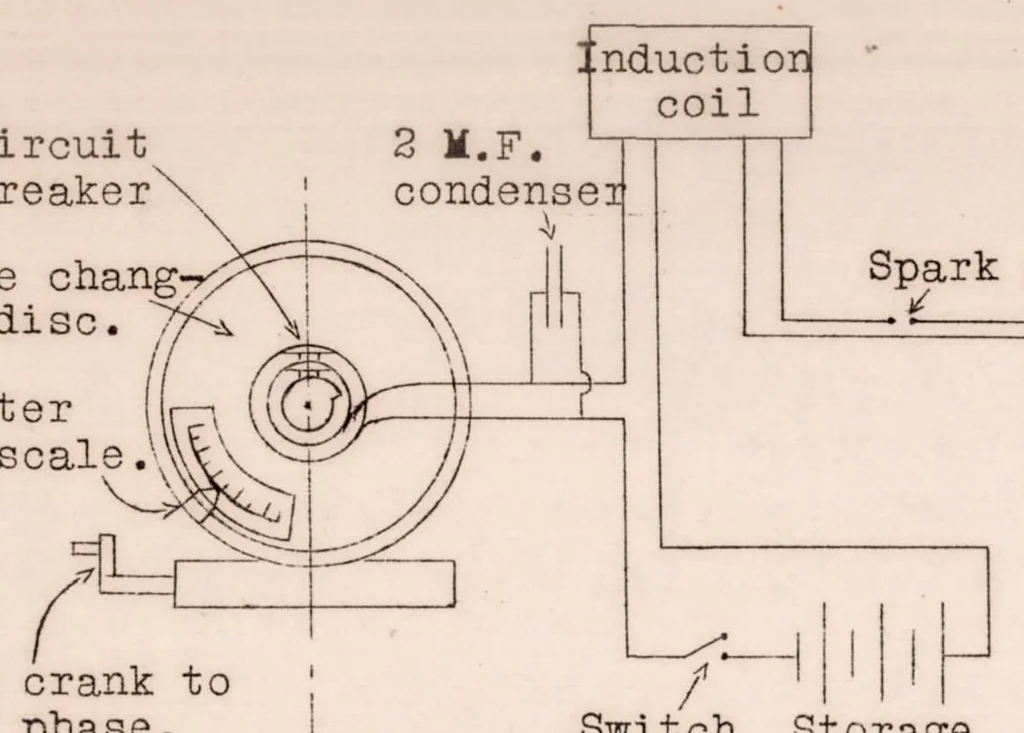

Observation port in ai … vary phase. Switch Storage battery Shaft driving circuit breaker cam in synchronism with the fuel pump camshaft. Fuel inlet- Plunger pump ED Fuel rump cam on engine camshaft. Fig.3 Diagrammatic sketch of oscilloscope and fuel injection system
