Heat Dissipation from a Finned Cylinder at Different Fin-Plane/Air-stream Angles (1932)

NASA Technical Reports Server (NTRS) · leaf 22

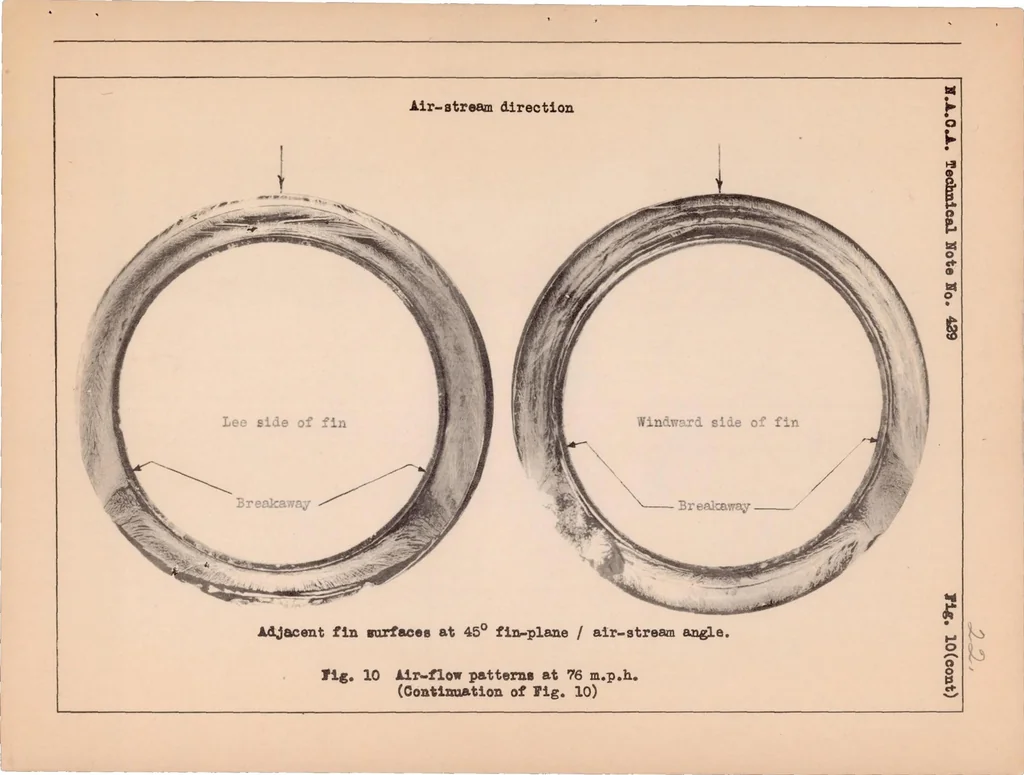

An illustration from Heat Dissipation from a Finned Cylinder at Different Fin-Plane/Air-stream Angles, 1932, leaf 22 — Air-stream direction ^ o fig. 10 llr-flow patterns at 76 m.p.h. (Continuation of Tig« 10)

NASA Technical Reports Server (NTRS)

Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
