Investigation of Low-speed Aileron Control Characteristics at a Reynolds Number of 6,800,000 of a Wing with Leading Edge Swept Back 42 Degrees with and Without High-lift Devices (1949)

NASA Technical Reports Server (NTRS) · leaf 15

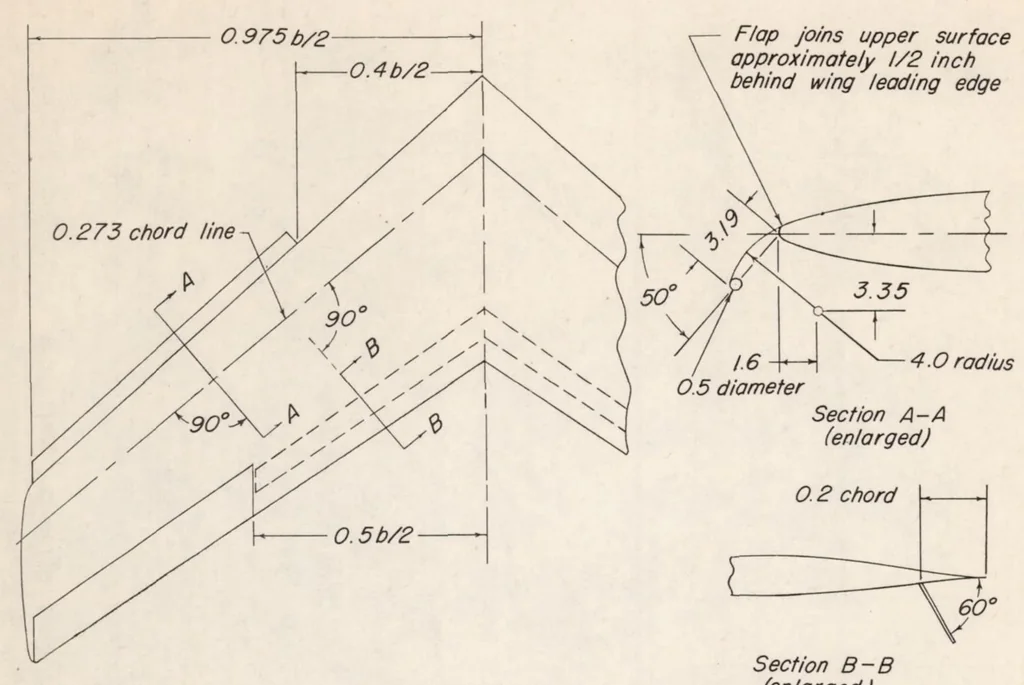

An illustration from Investigation of Low-speed Aileron Control Characteristics at a Reynolds Number of 6,800,000 of a Wing with Leading Edge Swept Back 42 Degrees with and Without High-lift Devices, 1949, leaf 15 — NACA RM L9E2^ Ik … (enlarged) Figure 2.- Details of wing highr-lift and stall-control devices.
