Prospective development of giant airplanes (1928)
NASA Technical Reports Server (NTRS) · leaf 10

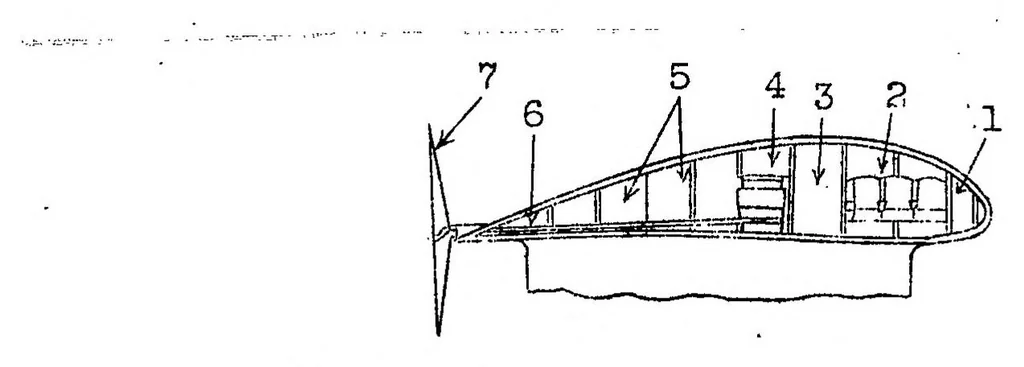

N.A.C.A. Technical Memorandum JTo.463 Figs.g,4 … 1. Lookout room. ^ 2. Living room. 3. Corridor. 4. Engine room. 5. Mail room. 6. Propeller shaft. 7. Four-bladed propeller. Fig.4 Section of wing of Dr. Rumpler's giant seaplane project. (94m) -308.4' Passenger cabins Qontro^. cabin ter=:f j jfe6 • hulls = _=>«=10-1000 hp * 1 engines. Fig.3 Front…NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
