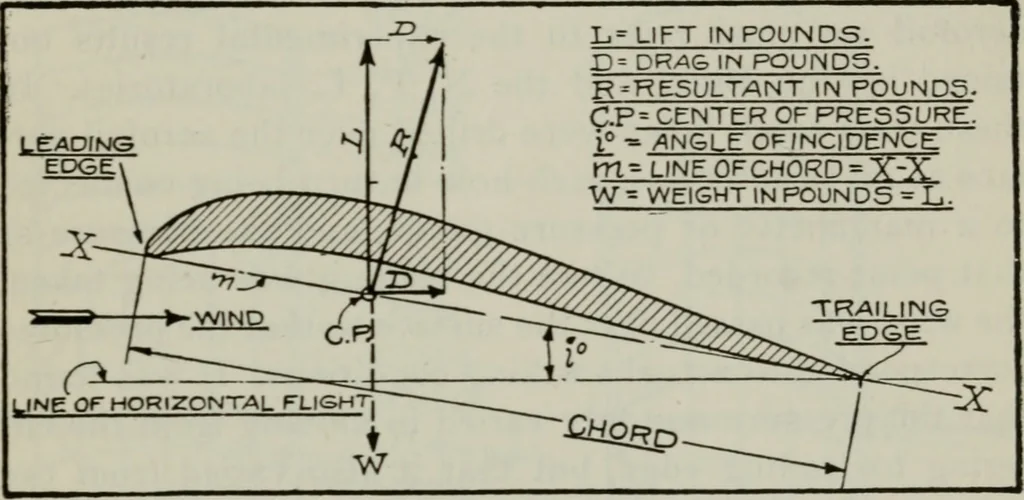

D through the C. P., andat right angles to one another, and then closing up theparallelogram by drawing lines parallel to L and D fromthe extreme ends of the latter. The resultant force indirection and extent will be the diagonal R drawn acrossthe corners of the parallelogram. The forces acting on… … Fig. 7. Forces Acting on an Aerofoil, Lift, Drag, and Resultant.Wind Is from Left to Right. Relative contributes from 60 to 80 per cent of the total lift. Achange in the outline of the upper curved surface vitallyaffects both the lift and lift-drag, but a change in thelower surface affects the…
