Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 232

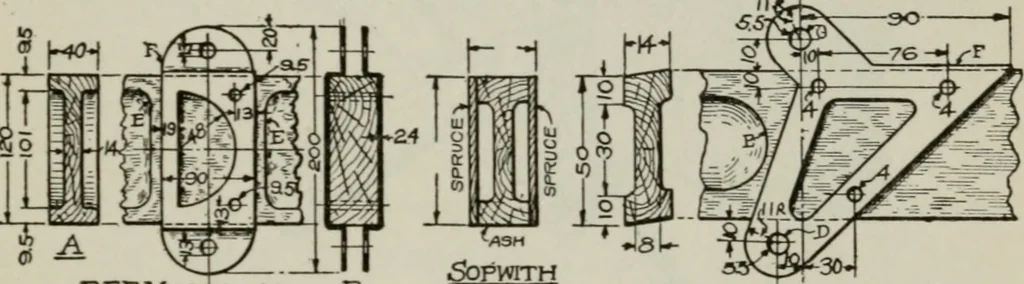

herethe stay wires are connected, the Bleriot spar is chan-neled out into I beam form as indicated in the figure.It will be noted that the top and bottom faces of the sparare slanted to agree with the curvature of the ribs. Asteel connection plate is bolted to the sides of the spar bythrough bolts,…
Airplanes
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
