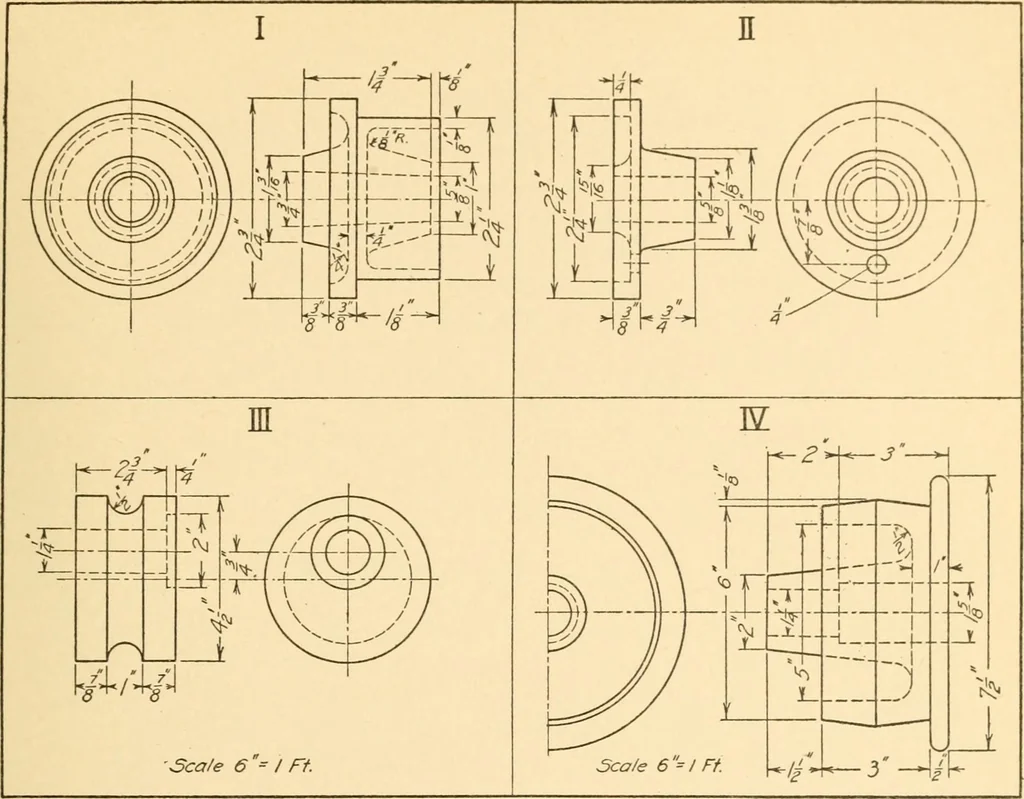

Sca/e e = I Ft Fig. 247. Probs. 22, 23, 24 and 25. … Fig. 248. Probs. 26, 27, 28 and 29. SCREWS AND BOLTS 191. The Helix.—A cylindrical heKx is a curve generated by a point on the surfaceof a cylinder, moving equal distances lengthwise of the cyUnder while it is movingequal distances around the cylinder. In Fig. 249 the diameter and pitch of the…
