Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 303

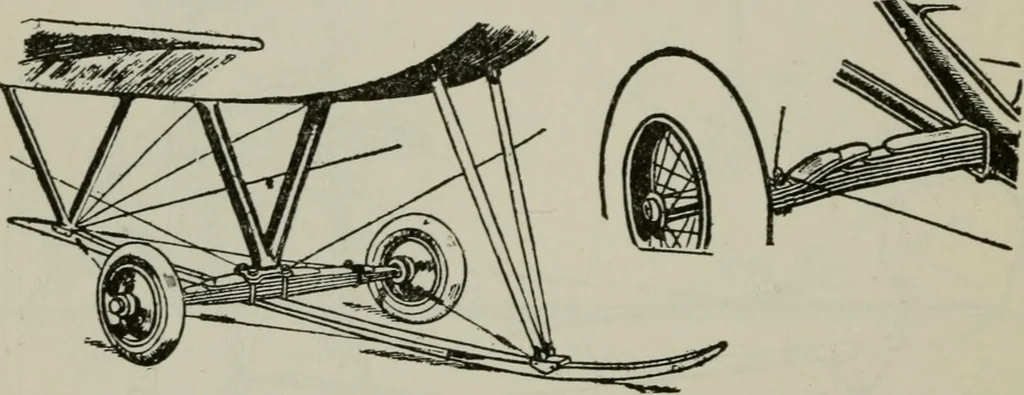

axlein a fore and aft direction. Another form of skid shockabsorber is given by Fig. 8, in which the rubber ringspass over a spool on the axle. The guiding links or 292 CHASSIS CONSTRUCTION radius rods on the inside of the skids regulate the axletravel. In general, the use of a radius rod is not… … Fig. 9. Chassis Details of the Xieuport Monoplane. This Has a CentralSkid and Uses an Automobile Type Steel Spring Instead of Rub-ber Cord. Fig. 10 Is a Detail of the Nieuport Spring. (At Right.) Fig. 9 is an older form of Nieuport monoplane chassis,a steel cross spring being used in place of the…
Airplanes
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
