Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 333

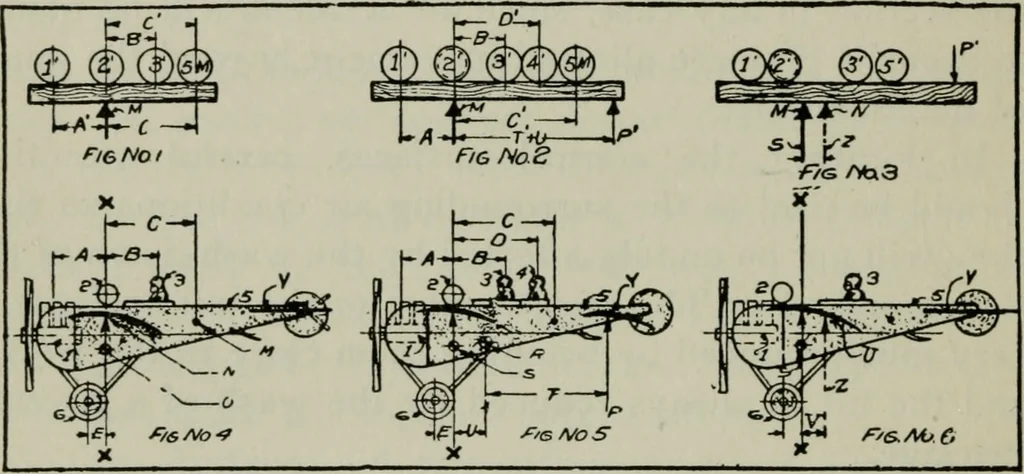

ABILITY Moment is measured by the product of the weight andthe distance from the fulcrum. If weight V should be 10pounds, and its distance A from the fulcrum should be20 inches, then it would cause a left-hand moment of10x20^200 inch pounds. If the system is to be inbalance, then the left-hand… … Figs. 1-6. Methods of Balancing an Aeroplane About Center of Lift. pressure or lift. The center of lift corresponds to thefulcrum in Fig. 1, and the weights of the aeroplanemasses and their distance from the center of lift areshown by the same letter as in Fig. 1. The engine V isat the right of the…
