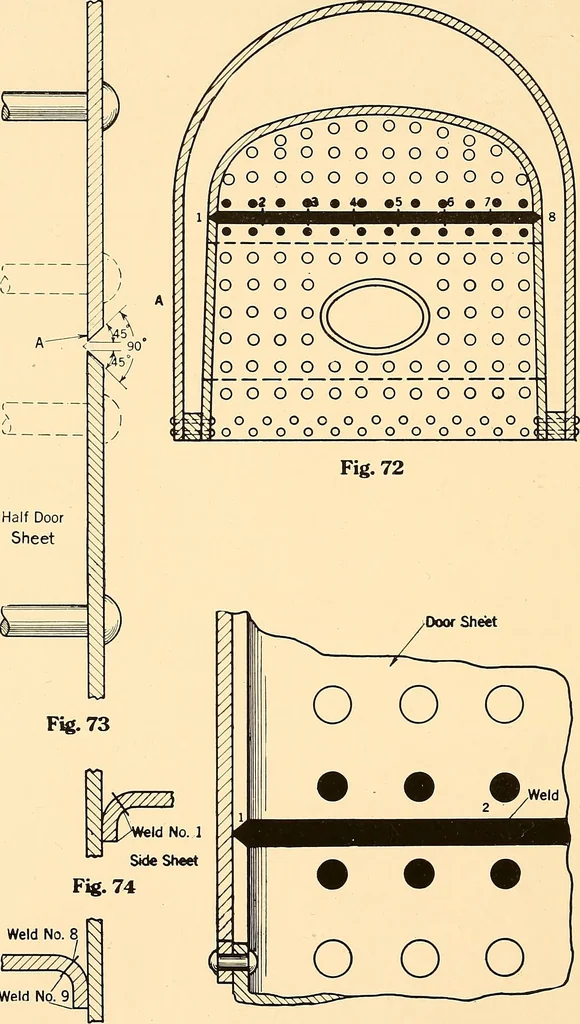

bolt the door sheet to the mudring. Operation 3. Using a No. 8 tip in the Airco welding torch and3/16 or *4 Airco welding rod, start to weld at 1, Figure 71. Thenweld the door sheet to the side sheet by welding from a point about10 down at 2 up to 1, from 3 to 2 and ending at A on the mudring.… … Weld Na9]Fig. 75 Fig. 72 A Page Thirty-jour AIRCO WELDING OFHALF DOOR SHEETS RIVETTED TO SIDE SHEETS IN PREPARING TO weld half door sheets above or below thedoorhole, the sheet should be cut not nearer the doorhole thanbetween the first and second rows of staybolts as shown inFigures 72 and 72A.…
