Pomilio, Ottorino · New York, McGraw-Hill · leaf 346

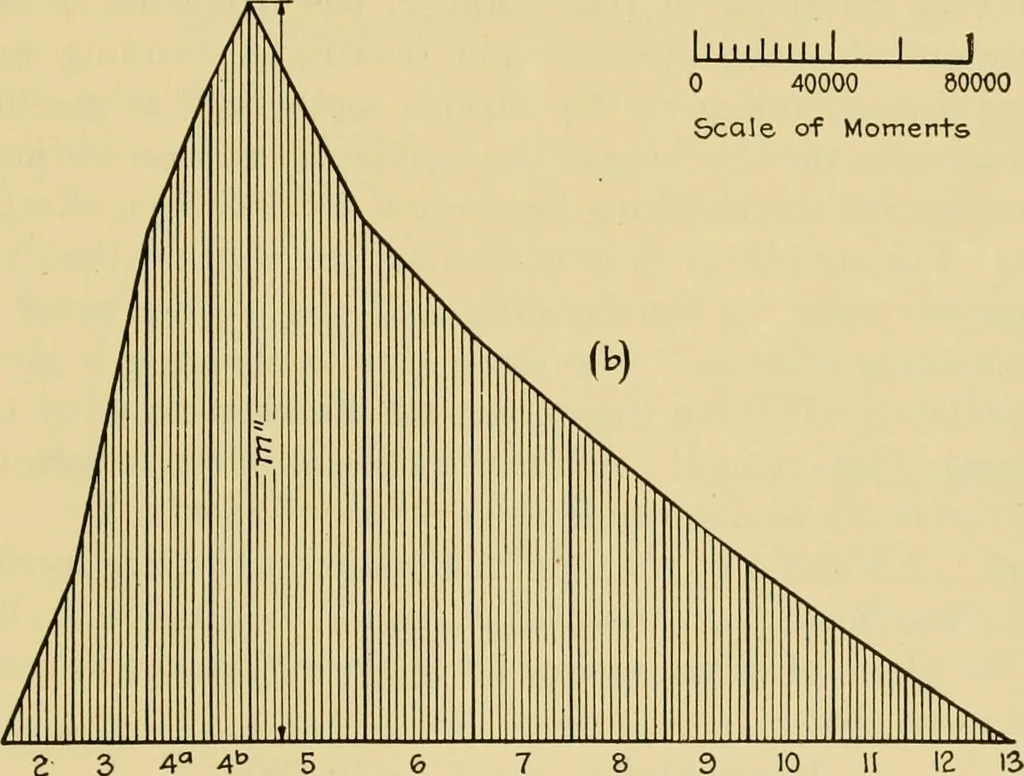

MOMENT DIAGRAM FOR ELEVATOR LOADS AND TEMTIMES THE FUSELAOE WEIGHTS 0 40000 80OOO /bs. Scale of Moments … 2 3 MOMENT DIAGRAM FOR COMBINATION OF ELEVATORAND RUDDER LOADS AND TEN TIMES THE FUSALASE WEIGHTS Fig. 201. 332 AIRPLANE DESIGN AND CONSTRUCTION It is then easy to draw the diagrams of the shearingstresses in this case (Fig. 199, a, b, c), and consequently,through their sum, the diagram of the…
Airplanes
