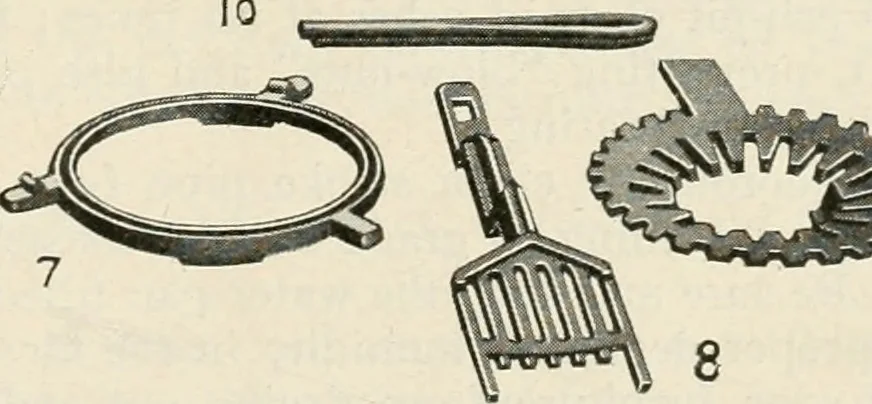

On this ring, placecasting 9 after which draw-center casting 8 should be pas-sed thru ash-pit door openingand will slip thru lugs on bot-tom Of Casting 10; then force Fig. 95—Pipeless Furnace parts. end of draw center up over bottom of draft door opening just above ash-pit door. Casting 10 is a… … 122 ALADDIN .MANUAL OF CONSTRUCTION With chain furnished, connect the check damper and draft door to wallplate, which should be fastened to the wall of a room directly over the furnace.By means of these chains, many trips to the basement are saved, as the fur-nace dampers may be regulated from…
