Science and art drawing : complete geometrical course ; consisting of plane and solid geometry, orthographic and isometric projection, projection of shadow's the principles of map projection, graphic arithmetic and graphic statics (1895)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan · leaf 538

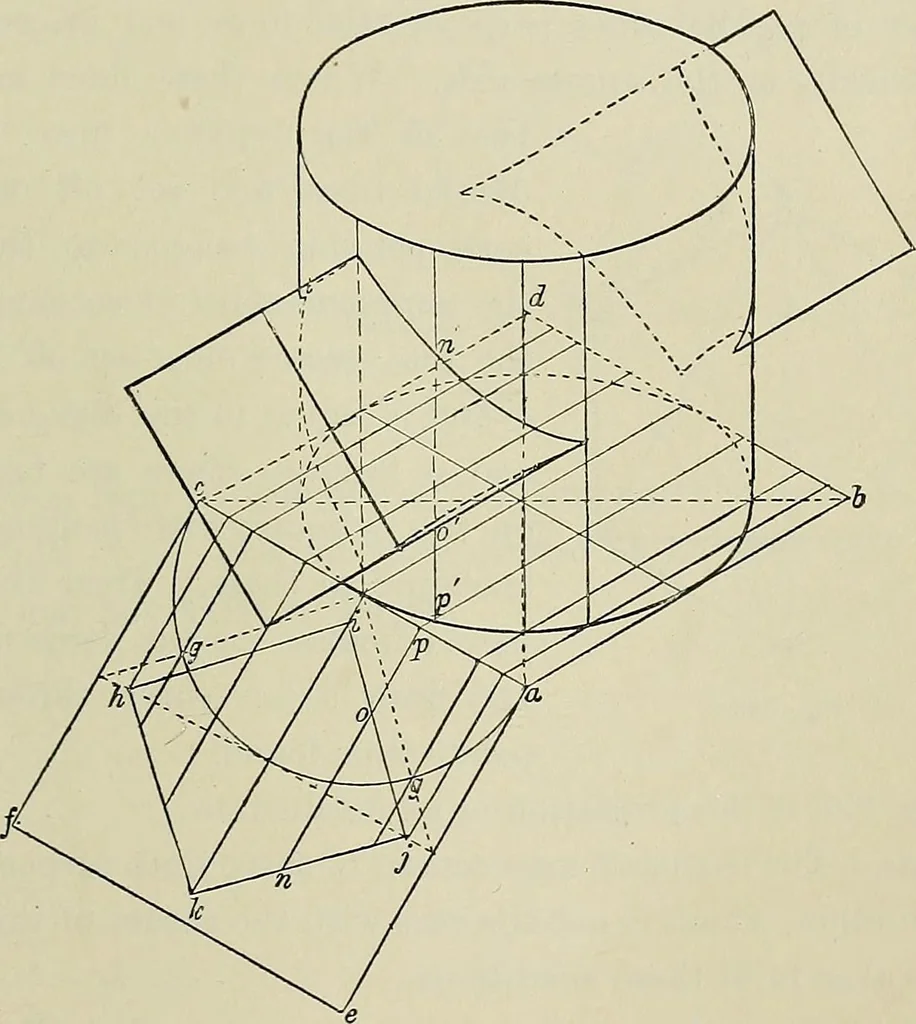

d a distance equal to pi, and draw acurve fair through the points. ISOMETRIC PROJECTION Sir With c as centre, draw the quadrant iff equal to the radiusof the bore of the cylinder. Enclose the quadrant in a square,and treat it in the same manner as the larger quadrant. Drawa square on the end of the… … Fig. 297. Fig. 297 shows the interpenetratiou of a cylinder andrectangular prism. First draw the projection of the square ahdc with sides equalto the diameter of the cylinder. Draw diagonals and diametersto this square. On the side ca draw an end elevation of the cylinder andprism geometrically.…
Geometrical drawing
