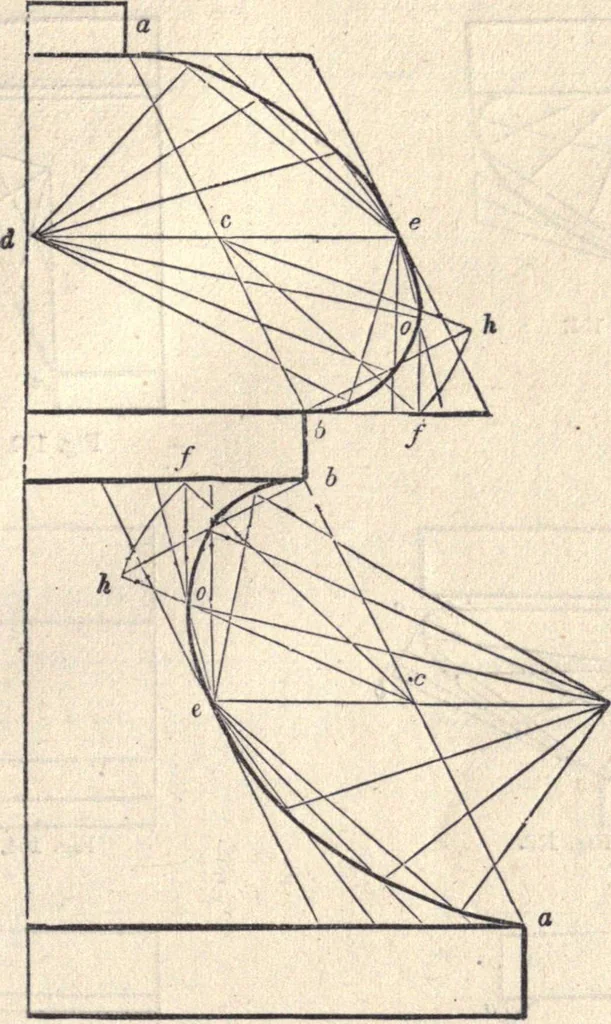

her al-ternately. 243.— To describe the Grecian torus and scotia. Join theextremities, a and 6, (Fig. 148;) and from/, the given projectionot the moulding, draw/o, at right angles to the fillets; from 6,draw b h, at right angles to a b ; bisect a b in c ; join / ^.d c,and upon c, with the radius,… … Fig. 148. ters of the required ellipse. To describe the curve by intersec-tion of lines, proceed as directed at Art. 118 and note; by atrammel, see Art. 116 ; and to find the foci, in order to describe itwith a string, see Art. 115.
