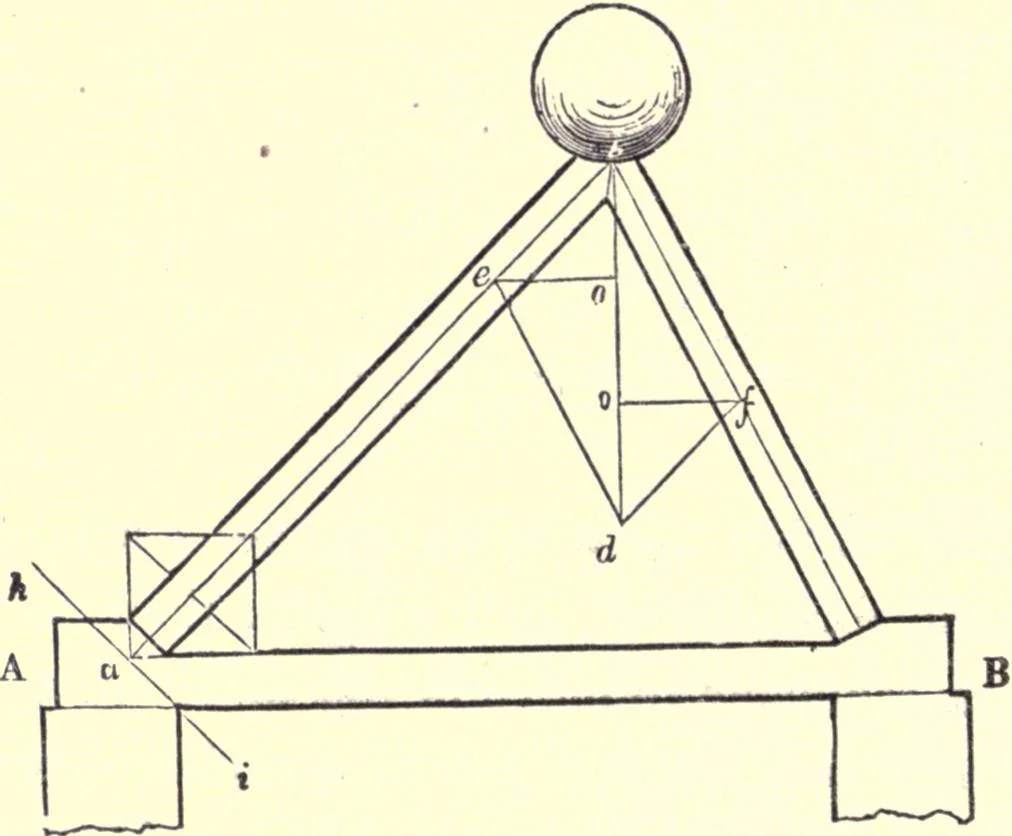

essures, it will be found in every case that the horizontalpressure of one strut is exactly equal to that of the other, how-ever much one strut may be inclined more than the other;and also, that the united vertical pressure of the two struts isexactly equal to the weight, W. (In this calculation… … Fig. 209. 268.—Suppose that the two struts, B and JB, (Fig. 208.)were rafters of a roof, and that instead of the blocks, A and A-the walls of a building were the supports: then, to preventthe walls from being thrown over by the thrust of B and B,it would be desirable to remove the horizontal…
