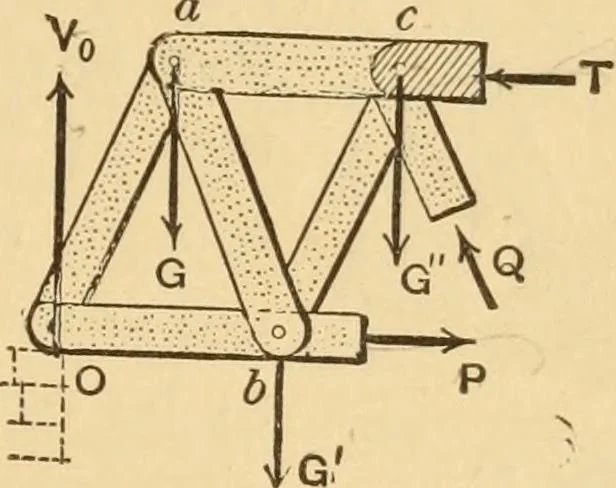

Fig. 30. Fig. 31. straight links, if wewnsh to consider free the portion on theleft of the imaginary cutting surface A . . B, the system of forcesacting on the ideal body so obtained (see Fig. 31) consists of theabutment reaction r„, the loads 6-, G, and (^ (at the jointsa, J), and c), and the…
