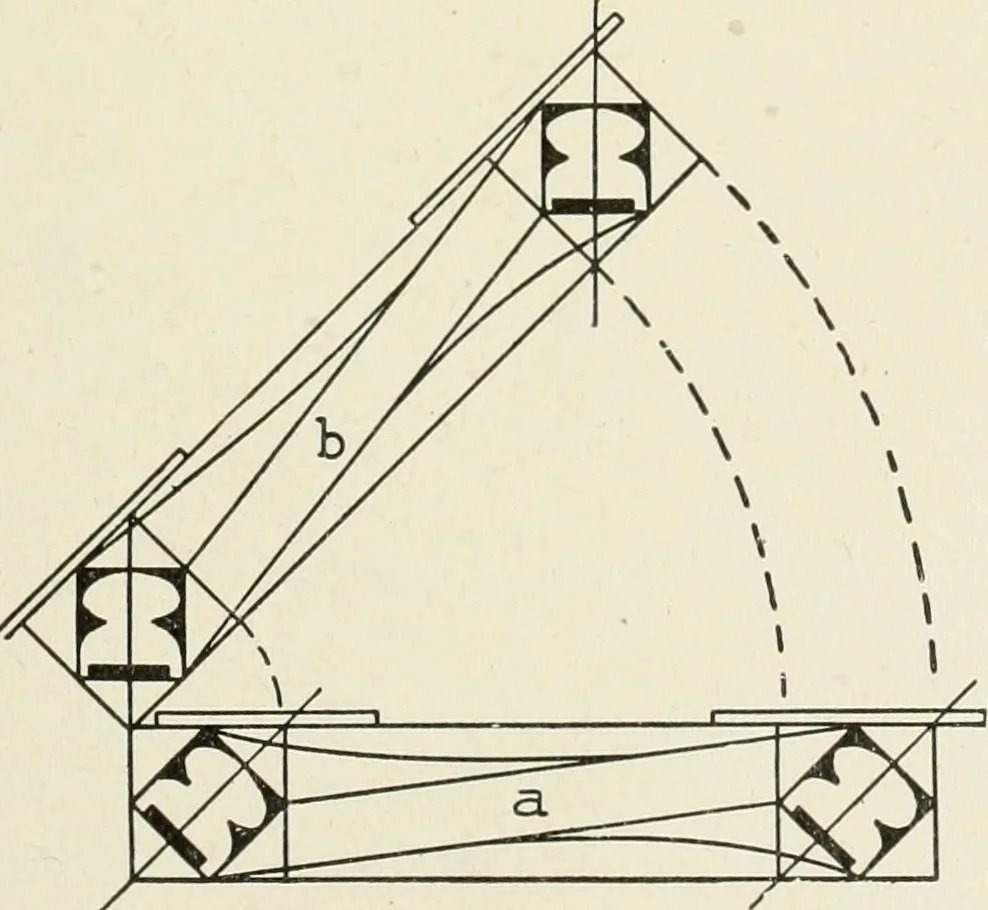

l as shown in Fig. 100. Measure the height of 5 risers, as shown inFig. 101, from the floor lineto 5; and draw the pitch ofthe flight adjoining thewreath, from 5 to the floorline. From the newel,draw the dotted line to w,square to the floor line;from w, draw the Mnewm,square to the pitch-line b.Now… … 321 58 STAIR-BUILDING w, at in. Connect m to n as shown by the line a. The intersectionof this line with b determines the angle between the two tangents aand b of the face-mould, which gives them the correct direction asrequired on the face-mould for squaring the joints. The joint at m ismade…
