The American house-carpenter; a treatise on the art of building, and the strength of materials (1873)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 402

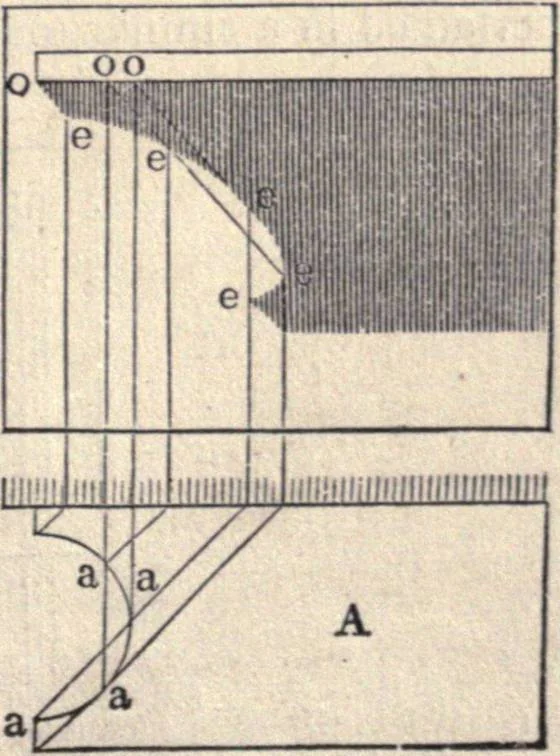

Fig. S47 JTg. 846. OOO AMERICAN HOLSE CARPENTER. 507-—To find the shadow of a shelf having its front edge, ofend, curved on the plan. In Fig. 346 and 347, A and A show anexample of each kind. From several points, as a, a, in the plan,and from the corresponding points, o, o, in the elevation,…
Carpentry · Architecture
