The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry (1852)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 228

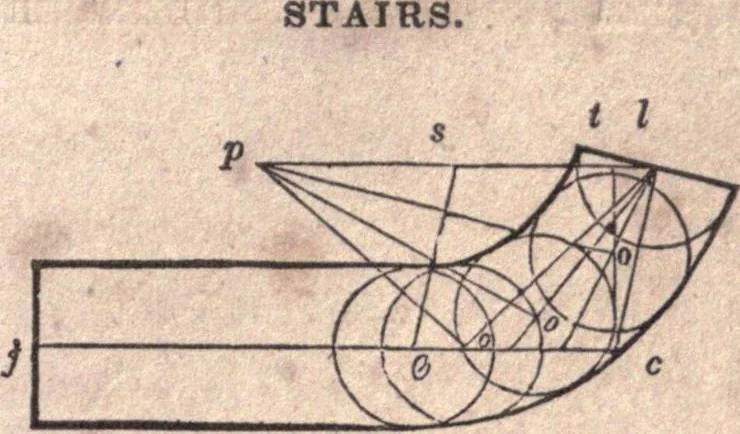

he line, e f, being the platform ; and a b c isthe plan of a line passing through the centre of the rail aroundthe cylinder. Through i and d, draw i k, and through j and e,draw j k ; from k, draw k I, parallel to f e ; from 6, draw b m,parallel tog d; from Z, draw I r, parallel to kj; from n, draw… … 211 Fig. 262. equal to c t at Fig. 261 ; through t, dr&wp I, parallel to^ c, andmake 11 equal to 11 at Fig. 261 ; join / and c, and complete theparallelogram, eels; find the points, o, o, o, according to Art.118 ; upon e, o, o, o, and/, successively, with a radius equal tohalf the width of the…
