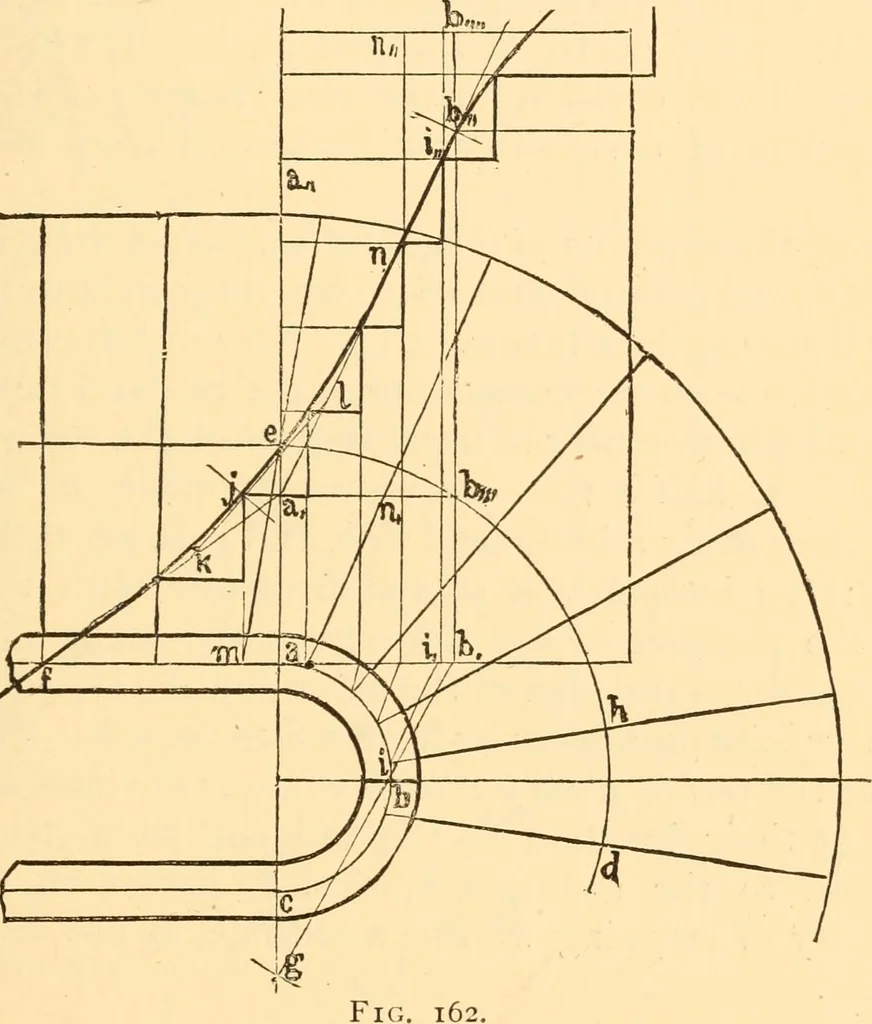

OR QUARTER-CIRCLE STAIRS. 289 280.—Hand-Railings for ^Vinding^ Stair§.— The termwinding is applied more particularly to a stairs having stepsof parallel width compounded with those which taper inw^idth, as in Fig. 135, and as is here shown in Fig. 162, inwhich f abc represents the central line of… … lar to af, draw ae (the occurrence here of one of thepoints of division on the tread-line perpendicularly oppositea, the spring of the circle, is only an accidental coincidence);make a a^ equal to two risers; join a^ and /. With thediameter <^r, on ^ as a centre, describe the arc at g,…
