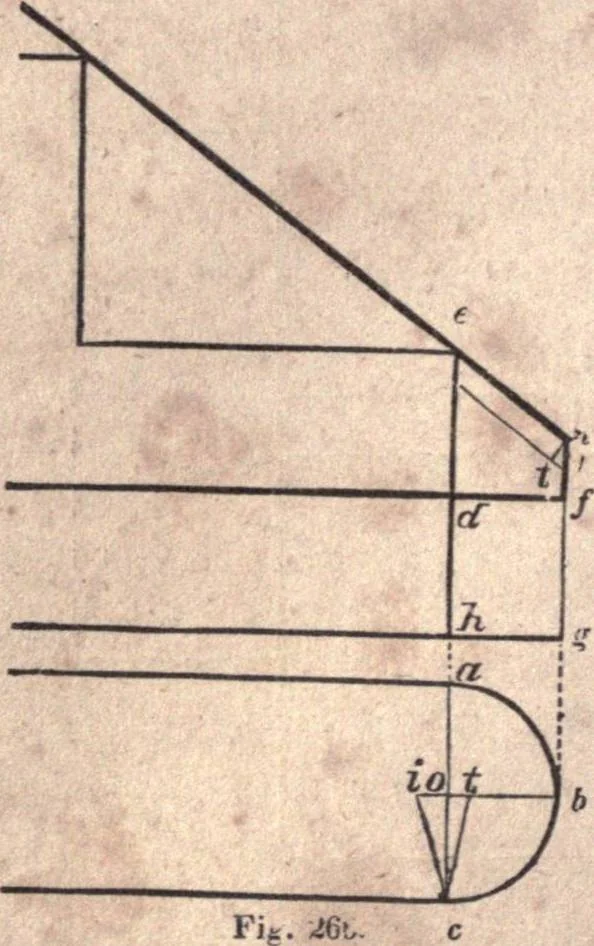

Fijr. 265. , draw c t, at right angles to e c, and equal to c t at Fig. 264 ; fromt, draw t p, parallel to c e, and make 11 equal to 11 at Fig. 264 :complete the parallelogram, e c I s, and find the points, o, o, o, asbefore; then describe the circles and complete the mould as inFig. 262. The… … 370.—CASE 3.— Where the rake meets the level. In Fig. STAIRS. 215 266, a b c is the plan of a line passing through the centre of therail around the cylinder as before, and j and e is a vertical sectionof two steps starting from the floor, h g. Bisect e h in d, andthrough d, draw df: parallel to h g…
