The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry (1852)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 262

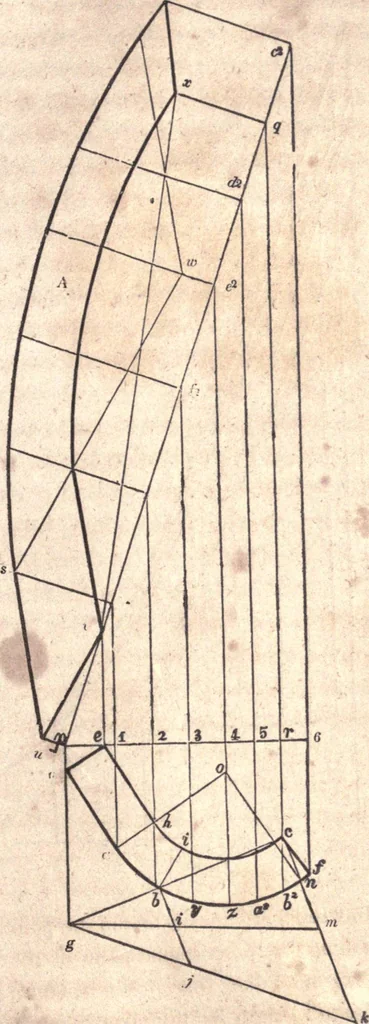

rawp 6, at right angles tog p. and from c, draw c q. parallel to gp ;make r q equal to h g at Fig. 296 ; join/) and q, and proceed asin the previous examples to find the face-mould, A. The jointof the face-mould, u v, will be more accurately determined byfinding the projection of the centre of the… … Fig. 246 AMERICAN POVfry-.ARPENTEIl.
Carpentry · Architecture
