Gould, Lucius D., b. 1814. [from old catalog] · New York, A.J. Bicknell & co. · leaf 68

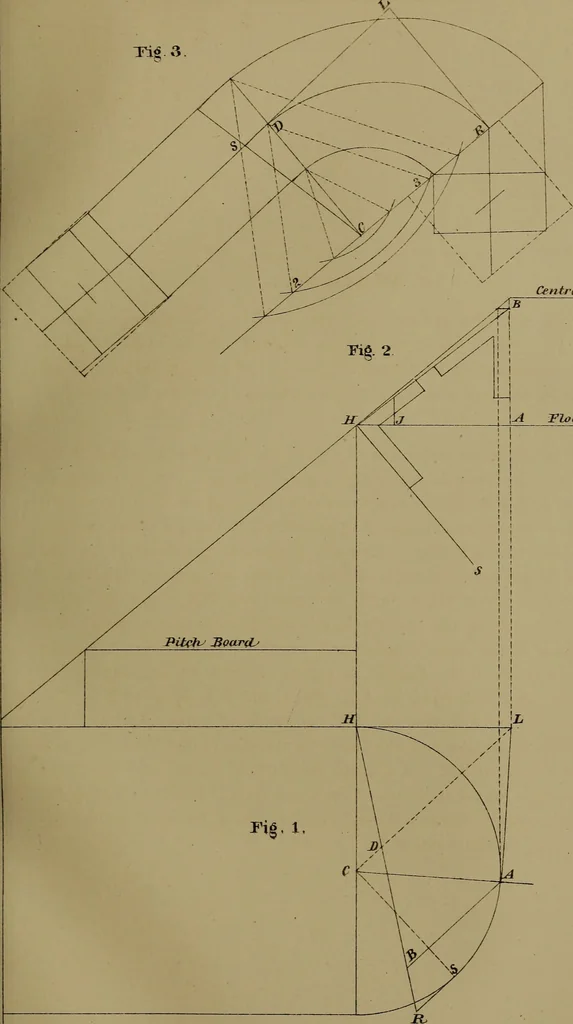

utting thecurve at S; draw R L equal to A L, Fig. 1, and S L equal to H B, Fig.2. Then S L is the direction and S R the length of curve required. Forthe width of the mould and the points for the pins to describe the outsideand inside curves: at Fig. 2, A J equals the width of the rail, and B J… … Centre of Hail Scale 2 V luetic i fbot. Plate 16 Exhibits the ground plan and elevation for a staircase, with winders in thequarter circle; the wreath in one piece. For the length of the major axis, of the elliptic curve for the centre of themould: At Fig. 1, from the points A and D, draw lines…
Stair building
