The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry (1852)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 278

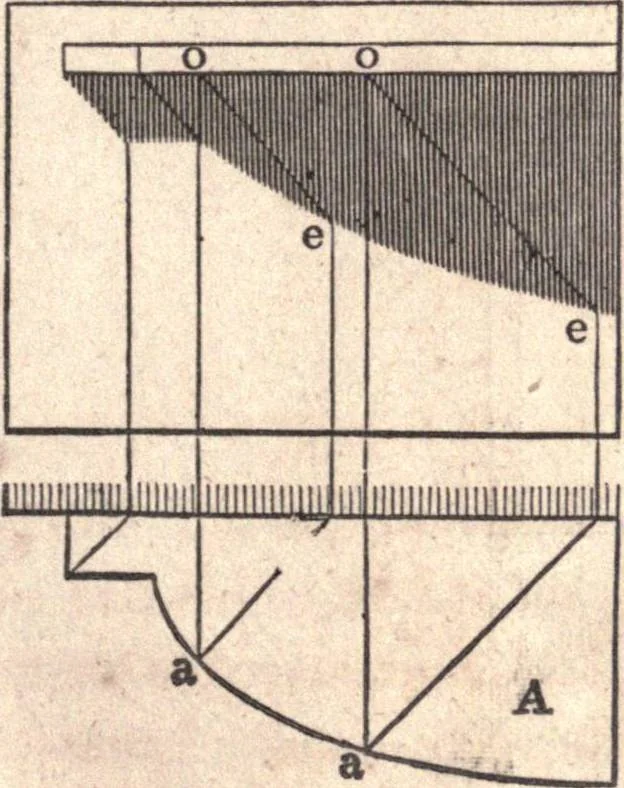

tain the point, e, by drawing a linefrom d, at the usual angle. In Fig. 313, join e and i\ then i eand e c will define the shadow. L\ Fig. 314, from o, draw o i,parallel with the shelf; join i and e; then i e and e c will be theshadow required. The projections in these several examples are bounded…
Carpentry · Architecture
