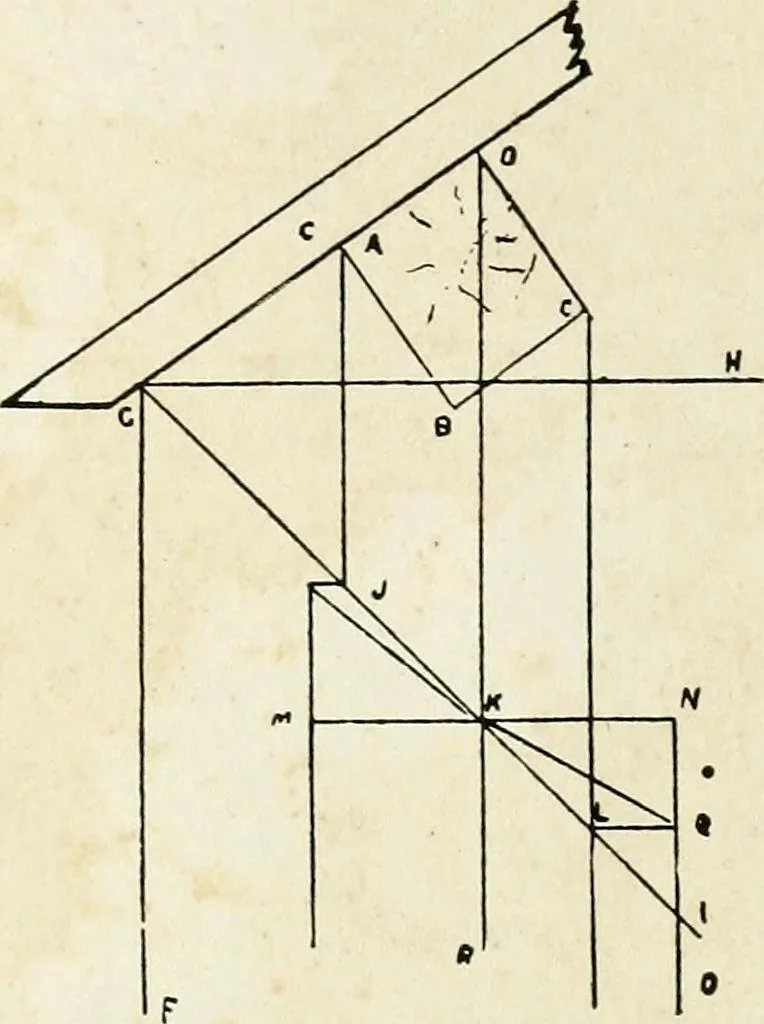

e to mark thepurlin as near fullsize as possible, to insure the bevels being accu-rate. A quick way of finding purlin lines by thesquare is given herewith: for the top and downbevels of purlins in a roof whk:h rise 16 inchesin 12 inches run use the following figures: Forthe side bevels take 16… … Fig. 169 226 PRACTICAL USES OF will give the required bevel. The bevels for 8-inch rise and 12-inch run are as follows: Forthe top side take 12 inches on the tongue and14^6 inches on the blade of the square and thetongue- will give the required bevel. For iheside bevel take 8 inches on the tongue…
